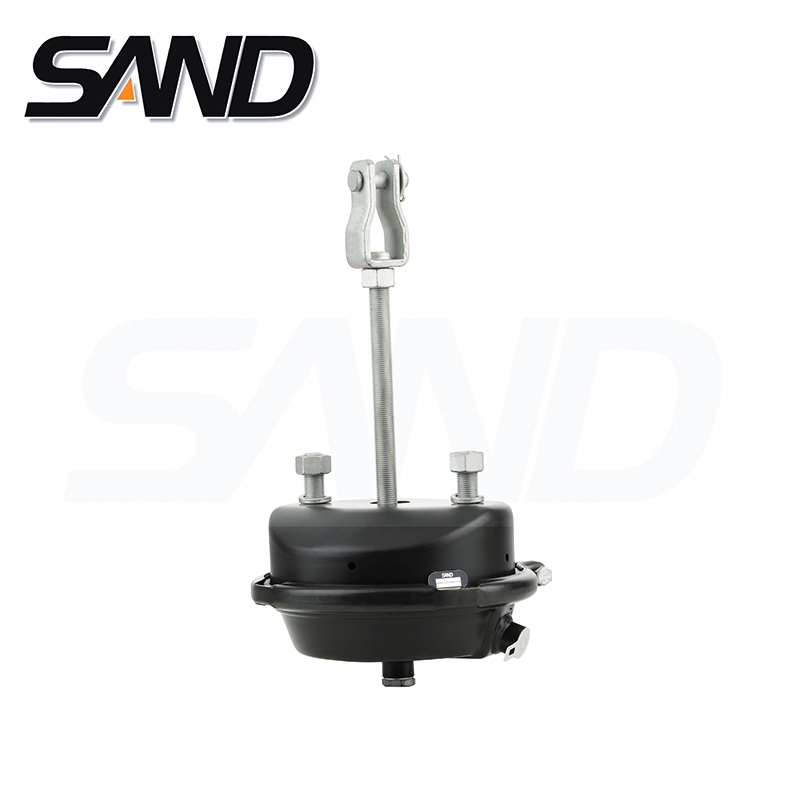

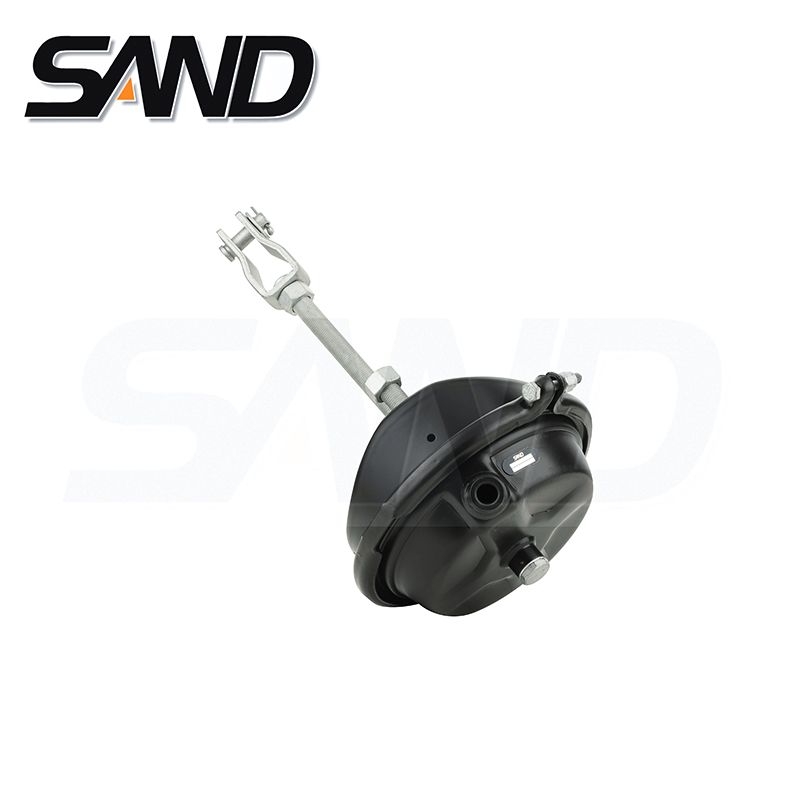

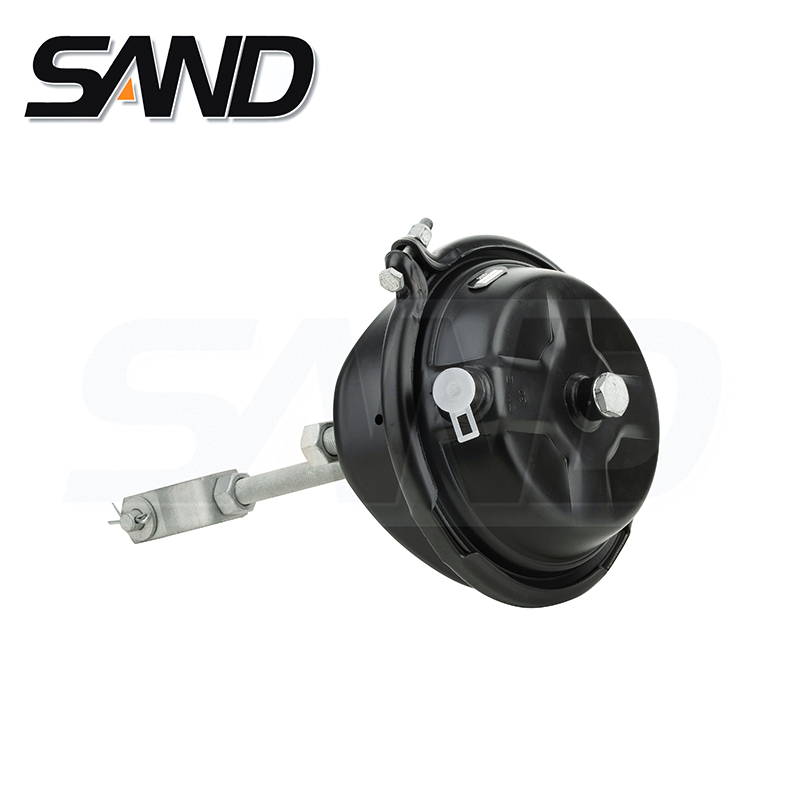

Regular Service Brake Chamber
product
Regular Service Brake Chamber
product

Regular Service Brake Chamber

OE Number  :  4231029000; BZ3261; 4231059000; 4231079000; BX3604
Suitable for  :  DAF; SCANIA; BPW; MAN; BENZ; IVECO; RENAULT; VOLVO

Detailed Drawing

  • Regular Service Brake Chamber
  • Regular Service Brake Chamber
  • Regular Service Brake Chamber
  • Regular Service Brake Chamber
Contact Us
Catalogue
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER STROKE M1 M2 α β L1 L2 VEHICLE
9G SD91001 4231029000 1505937
8283988000
09451591;9451590;1932619, 		 57 M16*1.5 / 180 45 186 227 DAF
Kässbohrer
SETRA
KRONE
SCANIA
9GL SD91001L
12G SD91002 4231039000  BZ3261 82200300;1505025;BBU5929
1932620;5021170046
5430053317;0544412010
09451581;500945158
120321101;I81955
200253;81511016203
81511016207;81511016211
81511016216;81511019203		 57 M16*1.5 M16*1.5+D 0 -135 186 NEOPLAN
DAF
SCANIA
RENAULT
BPW
KRONE
GOLDHOFER
MAN
14GL SD91008 75 M16*1.5 / 0 180 82.5
SD91008D SD91-14 M16*1.5+D -45 190
16GL SD91003 4231049000 A0034201324;0014200224
0054207518;0074200118
81511016266;81511019249
834481;745398
WA4231049000;1010153
1912301;5021170047
0544413010;0203272700
79537;ASX0014018
AFA9104001;500945157
07016;051007 		 75 M16*1.5 M16*1.5 180 45 186 227 DAIMLER
MAN;DAF;VOLVO
SCANIA
RENAUL;BPW
KOGEL;FREUHAUF
KRONE;ENALU
MACK;SCHMITZ
20GL SD91004 4231059000 0024206518;6984203721
81511016076;81511016199
07010020;0834482;BBU5931
834482;I61128AT;3345107R1
1738479;5021170049;0203273200
0544414010;175202;945154
ASX0014019;I66003;051009
200260;50291860		 75 M16*1.5 M16*1.5+D 0 -135 190 BENZ;MAN;NEOPLAN
DAF;VOLVO;IVECO
SCANIA;RENAULT
BPW;KOGEL
FRUEHAUF;KRONE
SCHMITZ;GOLDHOFER
LIEBHERR
SD91004N 4231050840  4231050740 4231054500 BX3419-II33481 BX3419-II33782  1305774
1313833		 / 90 70
SD91004A 718098 75 M16*1.5+D M16*1.5 0 0 190
24GL SD91005 4231069000 0064201618;0044208718
0004207424;0014203524
81511016080;81511016115
07010024;11015181
0834483;BBU5932
6212188;1618592
3345108R1;1738480
1010154;0038855200
5021170051;0203273100
0544415010;0544415100    		 75 M16*1.5 M16*1.5+D 180 45 186 DAIMLER;MAN
NEOPLAN;DAF;VOLVO
IEVCO;SCANIA
RENAULT;BPW
SCHMITZ;KOGEL
SD91005N 4231060810 1333153 / 0 180 215
SD91005A 718094 75 M16*1.5+D M16*1.5 0 0 200
27GL SD91009 75 M16*1.5 M16*1.5+D 0 -45 260
30GL SD91006 4231079000 0004208024;8283850000
07010030;834484
0705707;BBU5933
1010155;1738481
5021170052;5000815361
295534;0544416010
0544416100;0203272900
4454103900;175204
ASX0014021;50945152
123300001;502966208		 75 M16*1.5 M16*1.5+D 0 -135 186 BENZ;NEOPLAN
DAF;VOLVO;SCANIA
RENAULT;BENDIX
BPW;SAF/SAUER
KOGEL;FRUEHAUF
KRONE;HALDEX
LIEBHERR
SD91006D
BX3604-II33444
BX3605-II33445
BX3606-II33487
BX3609-II37479
 M16*1.5 180 45 190
36GL SD91007 4230089190 05.444.17.01.0 76 M22*1.5 M22*1.5+D 45 45 186 BPW

Leave a Message

Jiaxing Shengding Machinery Co., Ltd. originated from the core machinery team established by Sheng Zhonglin in 2003 and has gradually grown. It was re-registered and established in 2007. SAND has been adhering to the road of independent innovation for many years. All products are independently researched and developed, and new products are continuously introduced, becoming the first professional manufacturer of spring brake gas in the same industry in China.
Master first-hand information

News

product

Next Page

Views News
Product Knowledge

A Regular Service Brake Chamber, also known as a service brake chamber or spring brake chamber, is a crucial component of the air brake system in heavy-duty vehicles such as trucks, buses, and trailers. Its purpose is to convert the energy from compressed air into mechanical force to engage the vehicle's service brakes.

The Regular Service Brake Chamber operates using a diaphragm and a pushrod mechanism. When air pressure is supplied to the chamber, the diaphragm expands, causing the pushrod to move forward. This movement applies force to the brake shoes or pads, creating friction against the brake drum or disc. As a result, the vehicle slows down or comes to a complete stop.

One important characteristic of the Regular Service Brake Chamber is its ability to hold the brakes engaged when the air pressure is released or depleted. This ensures that the vehicle remains stationary or slows down gradually, even if there is a loss of air pressure in the system. The diaphragm, in its expanded state, maintains the brake shoes or pads in contact with the brake drum or disc until air pressure is restored.

The Regular Service Brake Chamber plays a crucial role in ensuring safe and reliable braking performance. It is typically used for the primary or service braking function of the vehicle. When the driver applies the brake pedal, the air pressure in the system activates the Regular Service Brake Chamber, causing the brakes to engage and slow down the vehicle.
