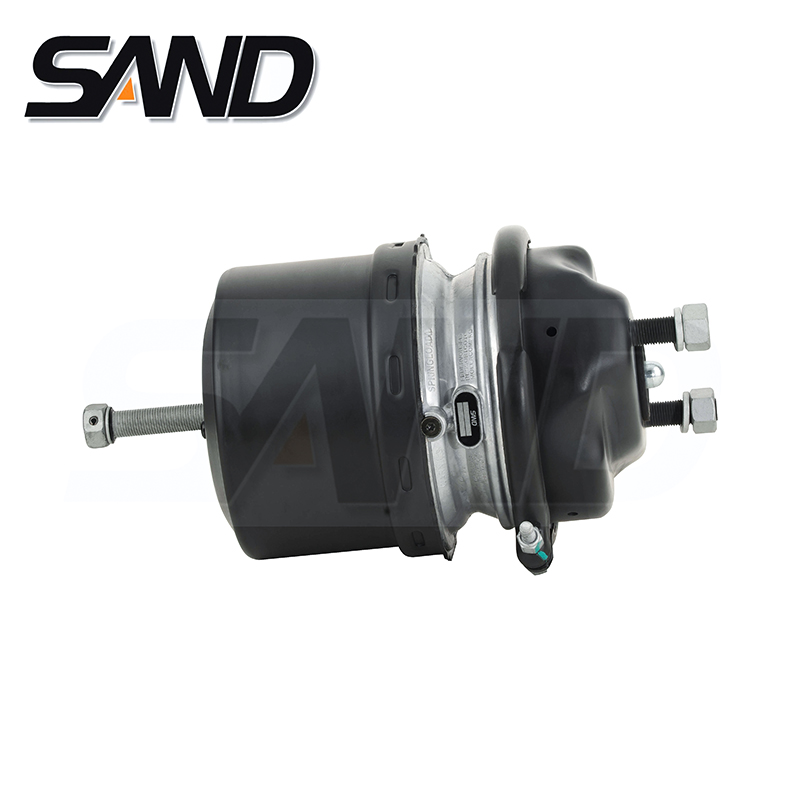

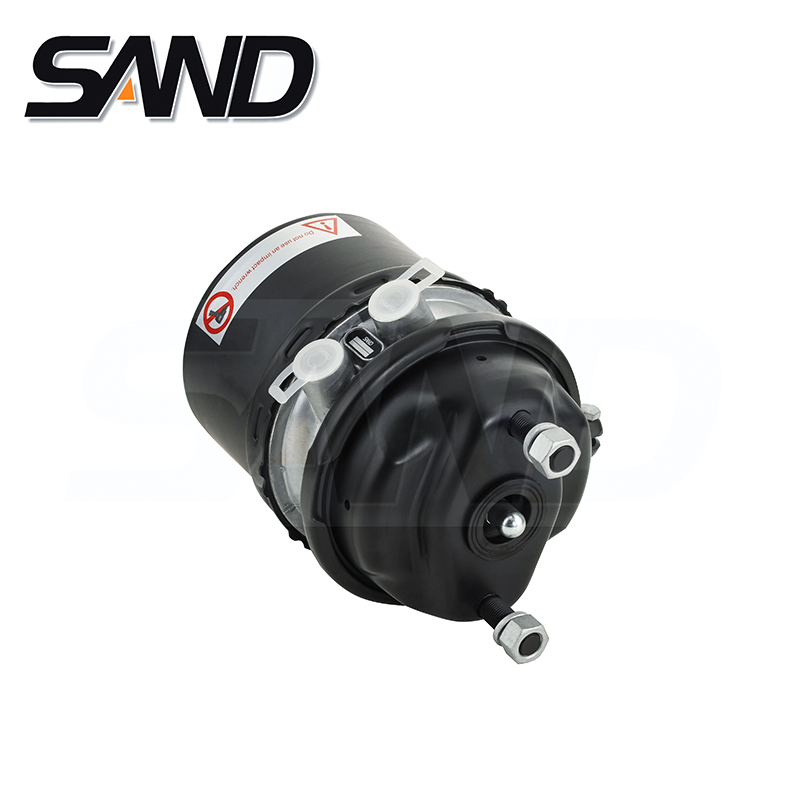

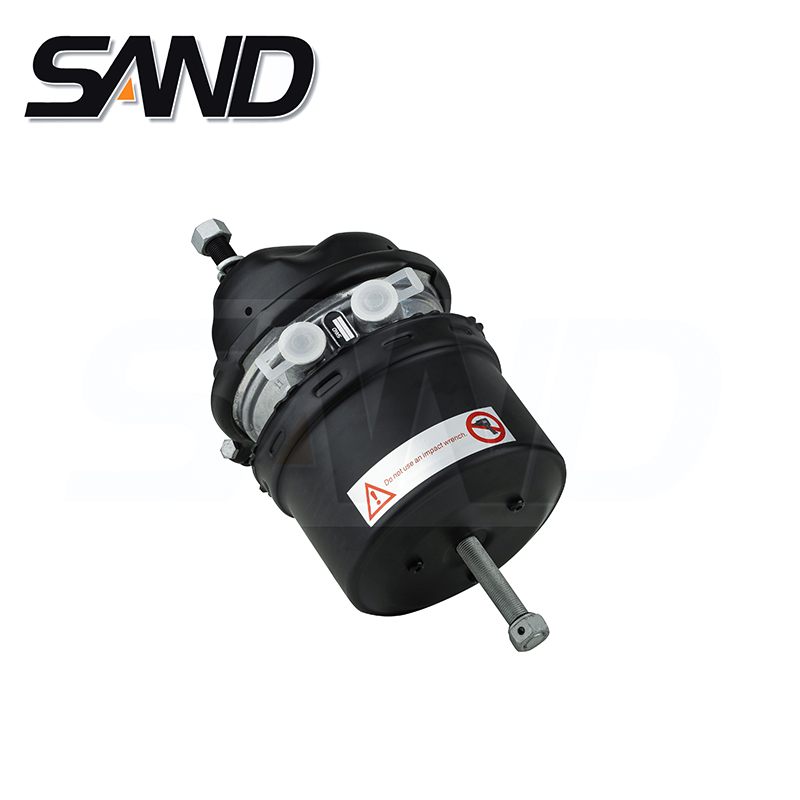

Regular Release T24 Rear Chamber

OE Number : 9254860100; 9254645050; 9254800100; 9254610320
Suitable for : BENZ; DAF; ACTROS; SCANIA; EVOBUS; BPW; VOLVO

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
Q12/24P	SD06053			M22*1.5VOSS	0	45	7900	15	Mercedes
Q12/24P	SD06053N01	9254860100 9254660100	A0174209518 A0204203118 1506228 1505449 A0154205518 ZG046330002	M22*1.5VOSS	-58	90	7900	15	BENZ DAF
Q14/24P	SD06054	9254880100	1517296 A0204207518	M22*1.5VOSS	0	-135	7900	15	DAF;BENZ
	SD06054N01	9254880120 9254680120 9254880140	A0154205718 A0194205118 1525765 1935466		-58	90			BENZ ACTROS DAF SCANIA
	SD06054N09	9254880260	A0214203218		-90	0			BENZ
	SD06054N03	9254880200 9254680200	A0204207318 A0154205918		-27	90			BENZ
Q16/24P	SD06004	9254645050		M16*1.5	90	-90	7900	15
	SD06004N01	9254840220 9254840260	A0214206518 A0204206518 A0214207518	M22*1.5VOSS	-58	90			BENZ
	SD06004N05	9254840200 9254640200	A0204206018 A0154202419 A0154208118 A0194205918 A0154206318	M22*1.5VOSS	-27				BENZ
	SD06004N09	9254645000	A0184205318 1505448 0203278800 505821377	M16*1.5	-45				BENZ/EVOBUS DAF BPW KRONE
	SD06004A01	9254640120 9254640140		M22*1.5VOSS	90	150	9300
Q18/24P	SD06055			M22*1.5VOSS	0	45	7900	15
Q18/24P	SD06055N01	9254635100	5010422952	M22*1.5VOSS	-90	-150	7900	15	KZ
Q20/24P	SD06005			M22*1.5VOSS	0	45	7900	15
	SD06005N01	9254800100 9254800107 9254600100	A0204203318 A0154207518 A0204204918 A0154208518		-27	90			BENZ
	SD06005N13	9254600900 9254809610	5010422754		-90	-150			KZ
	SD06005N15	9254601000	A0184205518 1505440	M16x1.5	-45	90			BENZ DAF VOLVO
	SD06005N11	9254600740	5010525321	M22*1.5 VOSS	90	0			RVI
	SD06005N12	9254600270	20361844 68323859	M16x1.5	-90	-45			VOLVO MERITOR
	SD06005N19	9254601020 9254800500	0203275600 1506400		0	90			BPW DAF
	SD06005N30	9254600320	4.454.1051.00 1519191 344149		90	-110			SAF DAF KOGEL
	SD06005N21	9254600140	A0174205318	M22*1.5VOSS	-147	90			BENZ
Q22/24P	SD06050			M22*1.5VOSS	-30	90	7900	15
Q24/24P	SD06002			M22*1.5VOSS	0	45	7900	15
	SD06002N	9254610320	4454105600	M16*1.5	90	-110			SAF/SAUER
	SD06002N01	9254610100 9254810100 9254810120 9254610600 9254811600 9254610960	A0154209318 A0194205718 A0194206718 1519378 1366420 1685994 1426894	M22*1.5VOSS	-27	90			BENZ SCANIA DAF DONGFENG HOWO
	SD06002N09	9254611720 9254611700 9254812520 9254812500	20780791 5010422954 21073718 7421073714		-90	-150			VOLVO RENAULT
	SD06002N11	9254811630 9254612310 9254811650	1685998 1439372 1685996		45	-90
	SD06002A			M22*1.5VOSS+T	0	180	8500
