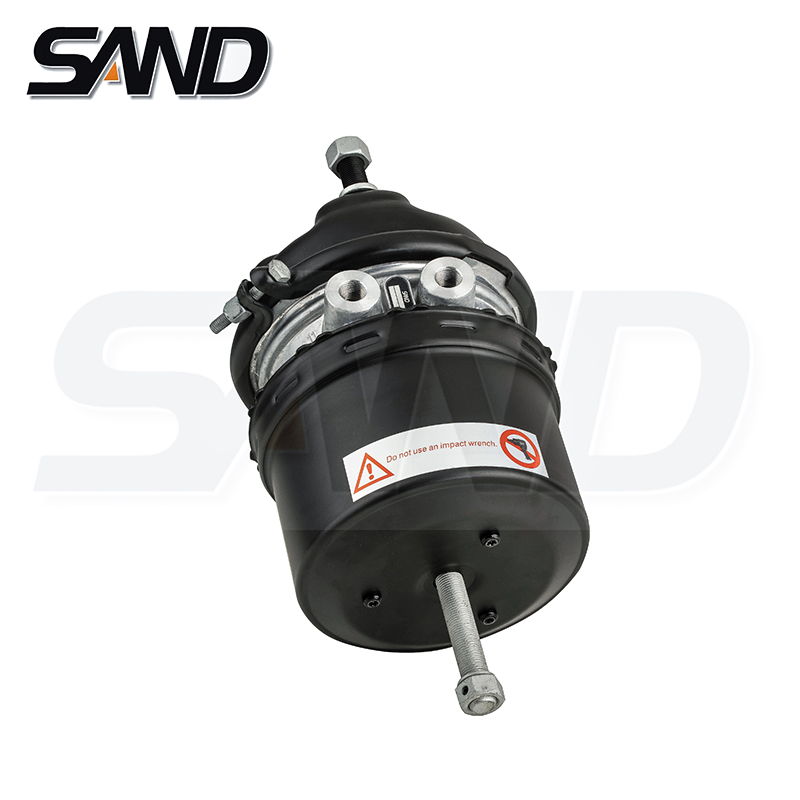

Cross Cover

OE Number : 9254612700; 9254670020; 9254813280; 9254811080; 9254611600
Suitable for : VOLVO; DAF; MERITOR; RVI; RENAULT

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
Q24/16PC	SD06007C	9254611910	20466077	M16*1.5	0	45	7400	15	VOLVO
Q24/16PC	SD06007CR	9254611530	20466076	M16*1.5	0	45	7400	15	VOLVO
Q22/24PC	SD06050C	9254670020 9254670200	1524738 20361848 68323864 20361823 68323866	M16*1.5	0	45	7900	15	DAF VOLVO MERITOR
	SD06050C03	9254670160	20401178 68324100		-60	45			VOLVO MERITOR
	SD06050C04	9254670170	20401179 68324101		60	-45			VOLVO MERITOR
Q24/24PC	SD06002CL	9254612700 9254810040 9254613300 9254813600 9254813620 9254813640 9254810500	20401590 7421401943 21752714 21596227 7421596229 23486130 20522028	M16 x 1.5	0	45	7900N	15	RVI
	SD06002CR	9254612710 9254810060 9254611310 9254813610 9254810510 9254813610 9254813630 9254813650 9254810510 9254613310	20401591 7421401944 20466073 20466073 20466073 21596226 7421596228 23486129 20522029 21752715						RVI RENAULT MERITOR
	SD06002C	9254810327 9254810320 9254611010	8113459 85000253 85000466 3987614 20721845 20466070
	SD06002C03	9254810300 9254611020	20522030 20466071		-60	45
	SD06002C04	9254611030 9254810310	20466072 20522031		60	-45
	SD06002C05	9254810330	22273774		-60	-135
Q24/24PAC	SD07003C	9254812900	21323797	M16 x 1.5	0	180	8500	15
Q2424PC2	SD06303C	9254813400	21423487	M16*1.5	0	45	7900	15	VOLVO
	SD06303C03	9254813280 9254813330 9254813300 9254813310	21326203 21326199 7421283616 7421326201		90	-90			VOLVO RENAULT
	SD06303C01	9254813260	21283629		60	-45			VOLVO
Q24/24PC3	SD06201C01	9254811080 9254811100 9254811150 9254811130	20742394 7420533213 20742393 7420573923	M16*1.5	90	-90	7800	15	VOLVO RENAULT
Q24/24PC3	SD06201C03	9254811170 9254811240	7420809444 20844352	M16*1.5	-90	-45	7800	15
Q24/30PC	SD06003C		59188A	M22*1.5VOSS	0	45	10800	15
Q24/30PC	SD06003C02	9254810600 9254810610 9254614800	20524534 7422096431 20466074	M16*1.5	0	45	10800	15	VOLVO RENAULT
Q24/30PC2	SD06304C	9254813420	21283630	M16*1.5	0	45	10800	15
Q24/30PC2	SD06304C01	9254813480 9254810260 9254813450	21326194 21752601 7421283615	M16*1.5	90	-90	10800	15
Q24/30PC3	SD06202C	9254611600 9254810700 9254810710 9254614720	20410136 20721842 7422096490 3197931	M16*1.5	0	45	10800	15	VOLVO RENAULT
	SD06202C01	9254811000	20524536		-60	45	10900
	SD06202C03	9254811020	20527614		-68	0	10900
	SD06202C05	9254811230 9254811200	20742391 20533193 7420533193		90	-90	10800
	SD06202C07	9254614700	3177337		-90	-135	10800
