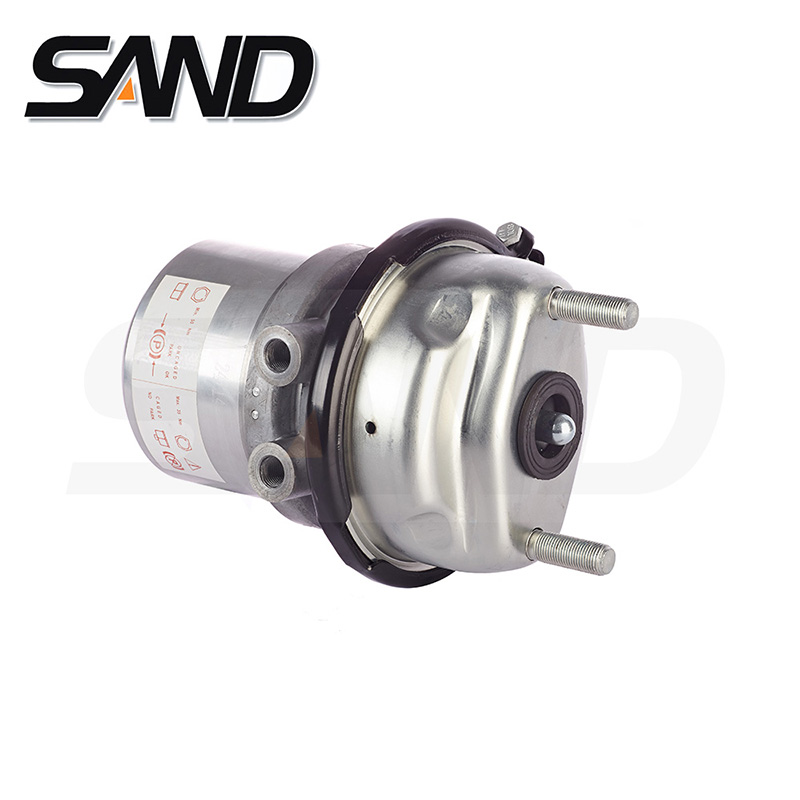

Inner Release

OE Number : BS9468; BS8519; BS9574; 41211227; 56435A
Suitable for : IVECO

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
K22/14P3	SD06107	BS9468-II39613F	41211227	M16*1.5	90	135	4580	15	IVECO
K24/14P3	SD06101	SD0620	56435A	M22*1.5VOSS	90	-135	5200	15
K24/14P3	SD06101N01	BS8519-II39614F	4121 1228 9947 8016	M16*1.5	90	135	4580	15	IVECO
K16/24P3	SD06103			M22*1.5VOSS	90	180	7800	15
K18/24P3	SD06104			M22*1.5VOSS	90	180	7800	15
K20/24P3	SD06105			M22*1.5VOSS	90	180	7800	15
K24/24P3	SD06106			M22*1.5VOSS	90	180	7800	15
	SD06106N01	BS9574-K013773	95340-80500	M16*1.5	-90	-135	7580	15
	SD06106N03	BS8510-K011682	95140-7K000	M16*1.5	0	-45	7580	15
K24/30P3	SD06102N01			M22*1.5VOSS	90	135	10500	15
K24/30P3	SD06102			M16*1.5	90	135	10500	15
