Regular Release Brake Chamber Disc
product
Regular Release Brake Chamber Disc
product

Regular Release Brake Chamber Disc

OE Number   :  BS9193; BS9297; BS9332; BS9476; BS9520
Suitable for   :  BPW; MAN; DAF; LEYLAND; SAF; ZF; SCHMITZ
The air brake chamber , aluminum cylinder which is corrosion-resistant and does not need to be surface treated, live up to the lightweight fuel-saving. The connection between middle body and hand brake use both axial seal and radial seal. It also has the advantages of the steel brake chamber, such as the good quality and High cost-performance.

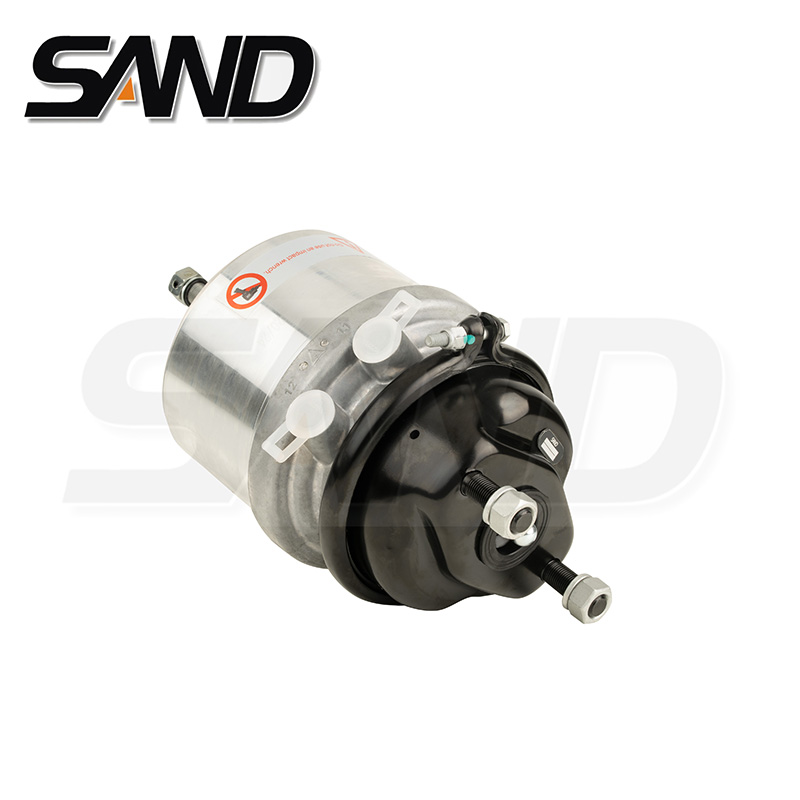

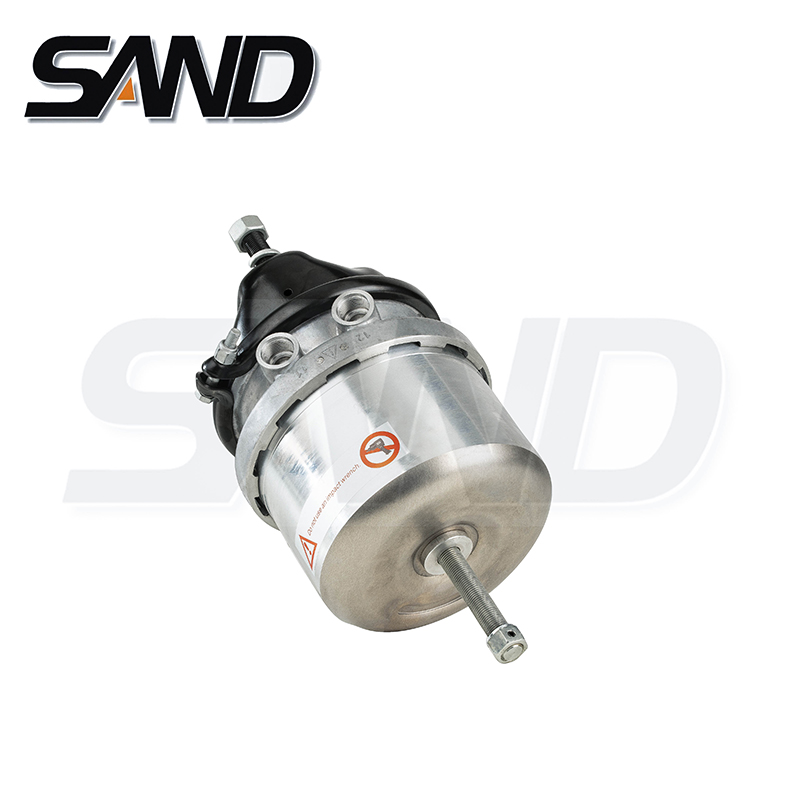

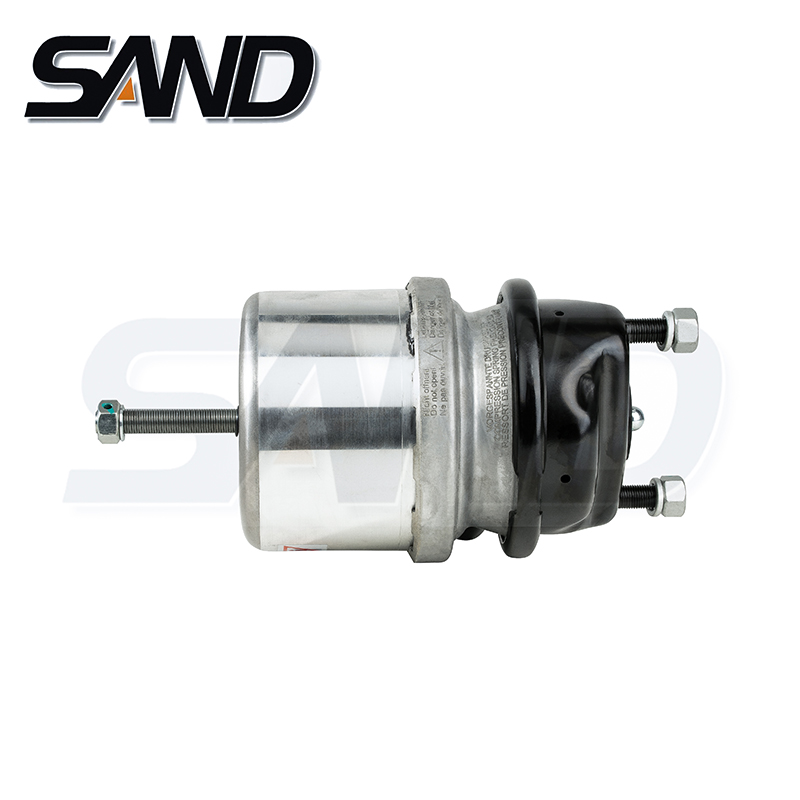

Detailed Drawing

  • Regular Release Brake Chamber Disc
  • Regular Release Brake Chamber Disc
  • Regular Release Brake Chamber Disc
  • Regular Release Brake Chamber Disc
Contact Us
Catalogue
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L VEHICLE
K24/14P SD06011 M22*1.5VOSS 90 -135 5200 15
SD06011N01 100.020.028 M16*1.5
K10/16P SD06019 M22*1.5VOSS 0 -58 5600 15
K12/16P SD06020 M22*1.5VOSS 90 180 5600 15
SD06020N01 BS9193-II37520 04.313.00.300 -43 90 BPW
SD06020A BS9181-K003082 36.50410.6002 0 135 7000 MAN
SD06020A01 BS9177-K007038
1408760
ABRD091
 M16*1.5 90 DAF LEYLAND
SD06020A03 BS9197-II33885 81.50410.6735 M22*1.5VOSS -90 -150 MAN
K14/16P SD06021 M22*1.5VOSS 90 180 5600 15
SD06021N01 BS9287-II38428F D041560 M16*1.5 0 180 BREDAME
SD06021N02 BS9297-II31783 02.032.76.100 -90 45 BPW
SD06021A01 BS9295-II33886 81.50410.6737 M22*1.5VOSS -150 6950 MAN
SD06021A03 BS9281-K007041 ABRD094 M16*1.5 -135 LEYLAND
SD06021A05 BS9251-K011359 90
K16/16P SD06022 M22*1.5VOSS 90 180 5600 15
SD06022N BS9397-II31227 02.032.75.400 M16*1.5 -90 45 BPW
SD06022N01 BS8303-K048966 828125 0 90 DAF
SD06022N02 BS9374-II39212
829694
1142163
 -135 45
SD06022N04 BS9377-II38496 M079048 -45 135 SMB
SD06022N06 BS9379-II38465 4 454 1047 30 -90 90 SAF
SD06022N07 BS9376-II38578 4 454 1046 30 0 0
SD06022A01 BS9396-II32160
81.50410.6583
81.50410.6739
81.50410.9583
81.50410.9739
81.50410.6581
 M22*1.5VOSS -90 -150 6950 MAN
SD06022A05 BS8335-K007654 81.50410.6875 M22*1.5VOSS -45 -90
SD06022A07 BS8333-K007649 81.50410-6861 M22*1.5 -90 -150
SD06022A03 BS8338-K007049 ABRD096 M16*1.5 -135 LEYLAND
K18/16P SD06023 BS9349-II31663 02.032.74.800 M16*15 -90 45 5500 15 BPW
SD06023N01 M22*1.5VOSS 90 -135
K16/24P SD06015 BS9332-II37883 0501.317.372 M16*1.5 0 45 7800 15
SD06015N01 M22*1.5VOSS 90 180
SD06015N11 BS9335-II38110F 054080 M16*1.5 0 0 SCHMITZ
SD06015N02 BS9304-II30619
052380
02.032.75.500
 -90 45 BPW     SCHMITZ
K18/24P SD06018 M22*1.5VOSS 0 180 7800 15
SD06018N01 BS8464-K008501 90 -90 7500
SD06018N03 BS8466-K008499 -40 90
K20/24P SD06014
BS9476-K004074
BS9476-II38408F
501321353
501317952
 M22*1.5VOSS 0 180 7600 15 ZF
SD06014N BS9458-II34389 25PK0279E 0 45
SD06014N01 25PK0278E 90 180
SD06014N02 BS9404-II31407
052509
INS014-0033
02.032.75.600
 M16*1.5 -90 45 BPW    SCHMITZ
SD06014N03 BS9471-II38124F 02.327.66.000 -60 -60 BPW
K22/24P SD06017 BS9451-II31226 02.032.74.500 M16*1.5 -90 45 7600 15 BPW
K24/24P SD06012 M22*1.5VOSS 90 180 7600 15
SD06012N BS9520-II34388 0501316050 0
SD06012N01 BS8517-II39219F M200024-02 M16*1.5 45 -135
SD06012N04 BS9503-II31408 02.032.75.800 -90 45 BPW
K24/30P SD06013 M22*1.5(VOSS) 90 135 10500 15
SD06013N01 M16*1.5

Leave a Message

Jiaxing Shengding Machinery Co., Ltd. originated from the core machinery team established by Sheng Zhonglin in 2003 and has gradually grown. It was re-registered and established in 2007. SAND has been adhering to the road of independent innovation for many years. All products are independently researched and developed, and new products are continuously introduced, becoming the first professional manufacturer of spring brake gas in the same industry in China.
Master first-hand information

News

product

Next Page

Views News
Product Knowledge
The Regular Release Brake Chamber Disc is a crucial component of air brake systems used in heavy-duty vehicles, including trucks, buses, and trailers. It is specifically designed to provide reliable and efficient braking performance in these applications.
This brake chamber disc combines the functionality of a brake chamber and a disc brake system. The brake chamber portion of the device converts the energy from compressed air into mechanical force, activating the brakes. It features a diaphragm and pushrod mechanism, which, when pressurized, moves the pushrod to engage the brake pads or shoes against the brake disc, creating friction and facilitating vehicle deceleration or stopping.
This mechanism ensures that when the compressed air is released or depleted from the brake chamber, the brakes automatically disengage, preventing unnecessary wear or dragging. This feature enhances safety and longevity by eliminating the risk of brake engagement when not actively braking.
The disc brake aspect of this component further enhances its performance. The brake disc, typically made of high-strength material, offers efficient heat dissipation and better braking performance under various driving conditions. Disc brakes are known for their excellent stopping power, fade resistance, and consistent performance, making them well-suited for heavy-duty applications.
With its integrated design, the Regular Release Brake Chamber Disc streamlines the brake system and simplifies installation. It provides a compact and reliable solution for braking needs in heavy-duty vehicles, ensuring optimal performance and safety on the road.
