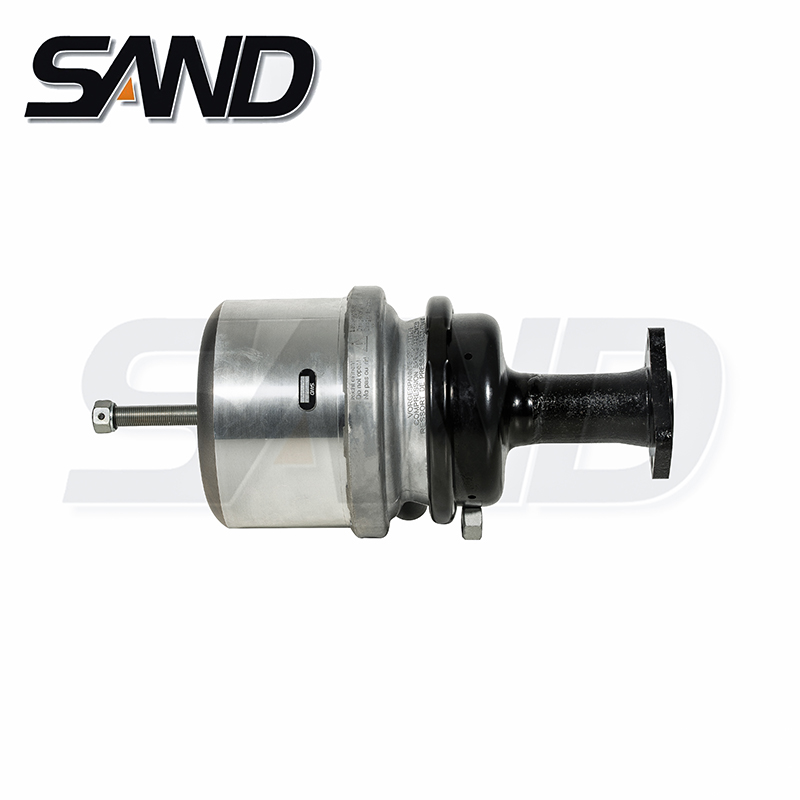

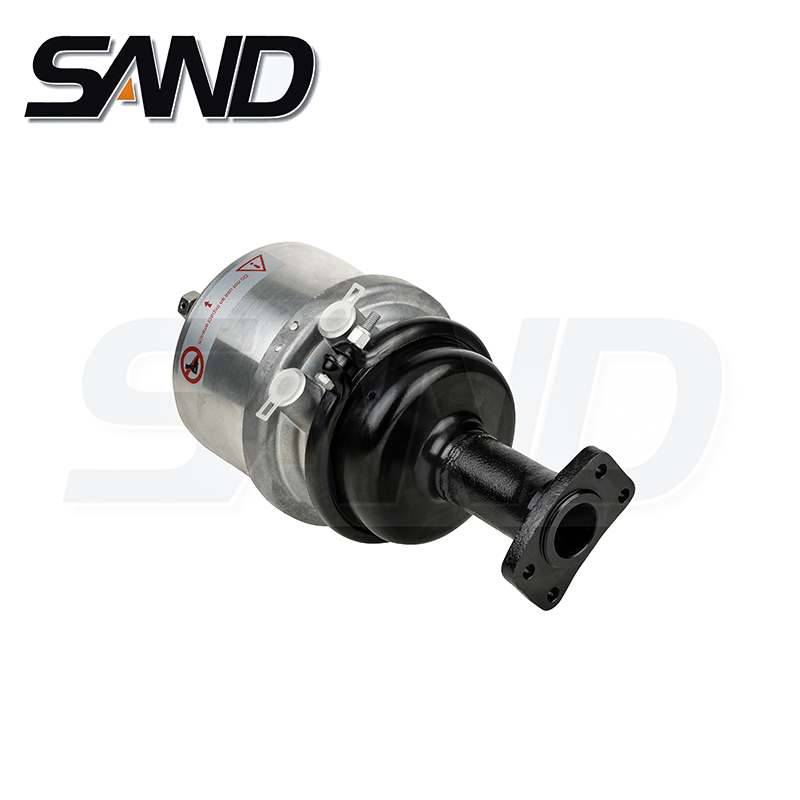

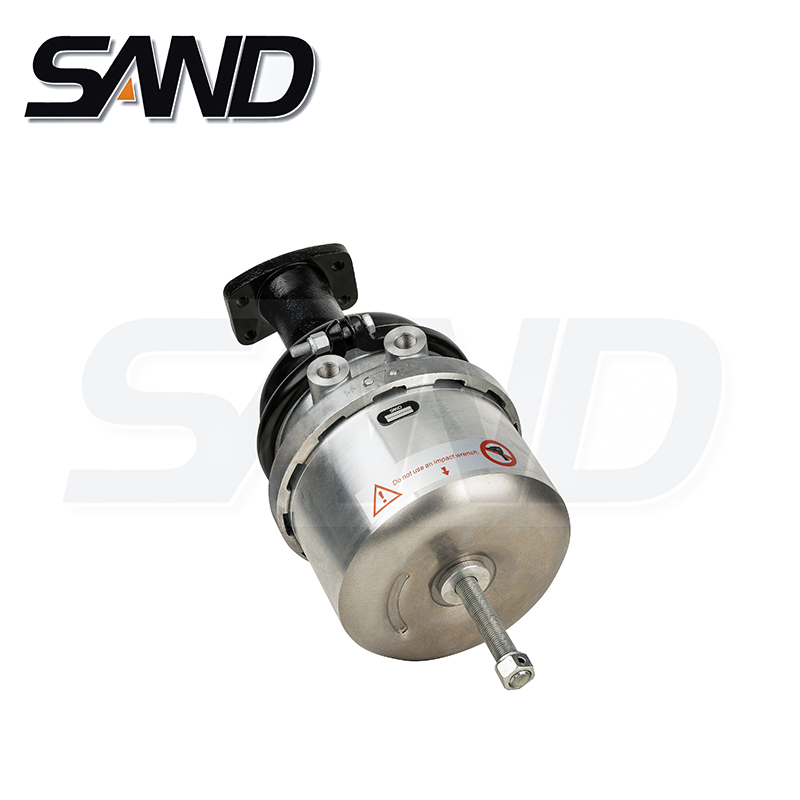

F-Series Regular Release

OE Number : BY9155; BY9210; BY9263; BY9409; BY9461
Suitable for : RENAULT

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L1	FLANGE SHAPE	VEHICLE
K10.516F1	SD307KF	BY9155-II18895 BY9159-II34174	A 005 420 1524 A 005 420 0624	M22*1.5VOSS	48	-45		141	curving
K10.516F1	SD307KF01	BY9156-II18944 BY9160-II34175	A 005 420 1424 A 005 420 0524	M22*1.5VOSS	-48	45		141	curving
K12/16F1	SD305KF	BY9210-II18946	A 005 420 16 24	M22*1.5VOSS	48	-45		141	curving
	SD305KF01	BY9209-II18945	A 005 420 17 24		-48	45
	SD306KF	BY9223-K004056	A 020 420 88 18		48	-45
	SD305KF02	BY9224-K004057	A 020 420 87 24		-48	45
	SD307KF	BY9227-K004058	A 020 420 90 18		65	-45
	SD305KF03	BY9228-K004059	A 020 420 89 18		-65	45
	SD308KF	BY9240-K014675	A 021 420 80 18		40	-45
	SD305KF04	BY9241-K014676	A 021 420 79 18		-40	45
K14/24F1	SD301KF	BY9263-II30393000		M16*1.5	0	45		170	curving
K16/24F1	SD302KF	BY9321-II35117		M16*1.5	0	45		170	straight	RENAULT
K20/24F1	SD303KF	BY9409		M22*1.5VOSS	0	135		181	straight
K22/24F1	SD304KF	BY9461		M22*1.5VOSS	0	45		151	straight
