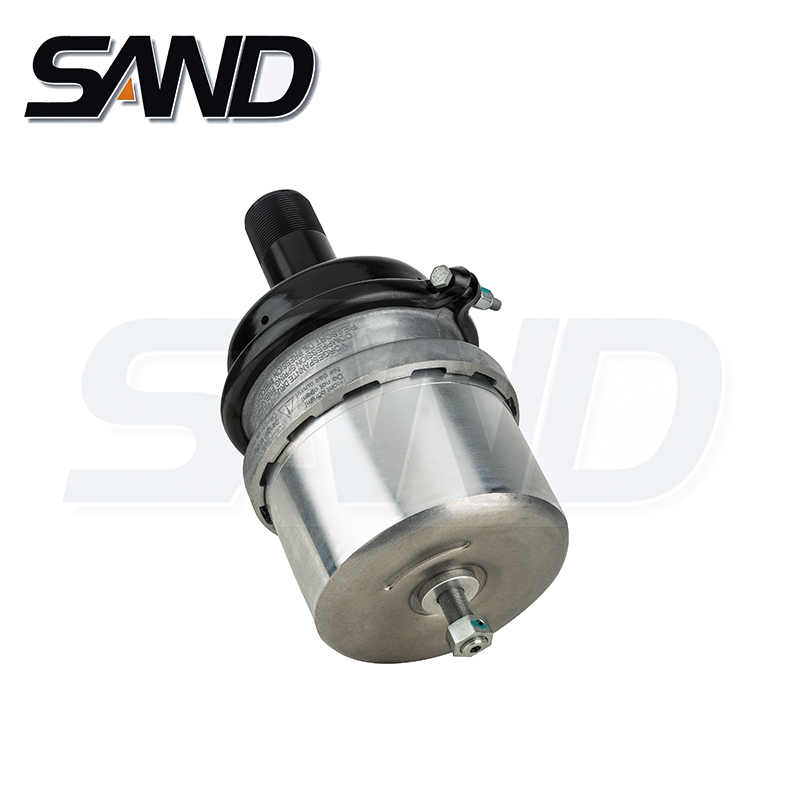

J-Series Quick Release
product
J-Series Quick Release
product

J-Series Quick Release

OE Number :  BY9370; BY9372; BY9451; BY9276; BY9331; 41285151
Suitable for :  IVECO
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L1 M3 VEHICLE
K12/16J2 SD201KJ M22*1.5VOSS 90 180 158
K16/16J2 SD203KJ M22*1.5VOSS 90 180 150 M48*2
K12/20J2 SD202KJ BDW6801220 M22*1.5VOSS 90 180 160 M48*2
K14/20J2 SD204KJ M16*1.5 90 180 150 M48*2
K16/20J2 SD205KJ BY9370 BY9370 M16*1.5 90 180 150 M48*2
K18/20J2 SD208KJ BY9372 BY9372 M16*1.5 90 180 150
SD208KJ01 BY9369 BY9369 190
K14/24J2 SD206KJ M22*1.5VOSS 90 180 160 M48*2
K16/24J2 SD207KJ M16*1.5 90 180 160 M48*2
K18/24J2 SD209KJ M22*1.5VOSS 0 135 190 M48*2
K20/24J2 SD210KJ M22*1.5VOSS 0 135 216 M48*2
K22/24J2 SD211KJ M22*1.5VOSS 0 135 160 M48*2
SD211KJ01 BY9451 M16*1.5 0 135 160 M48*2
SD211KJ02 BY9460 195
SD211KJ03 BY9452 160
K24/24J2 SD212KJ M22*1.5VOSS 0 135 160 M48*2
Long Cylinder:
K14/24JA2 SD271KJN01 BDW6801424 M22*1.5VOSS  0 135 9600 161
SD271KJN02 BY9276-K001057 4121 1359 M16*1.5 160 M48x2
K16/24JA2 SD272KJN01 M22*1.5VOSS 90 -135 9700
SD272KJN02 77723790 M16*1.5 180
SD272KJN03 BY9331-K014030
41285151
41285152
0 135 M48x2 IVECO
