S-cam Rhombus Cover

OE Number : 4231070100; 4231060410; CH3519KQG010N4; 20438473
Suitable for :

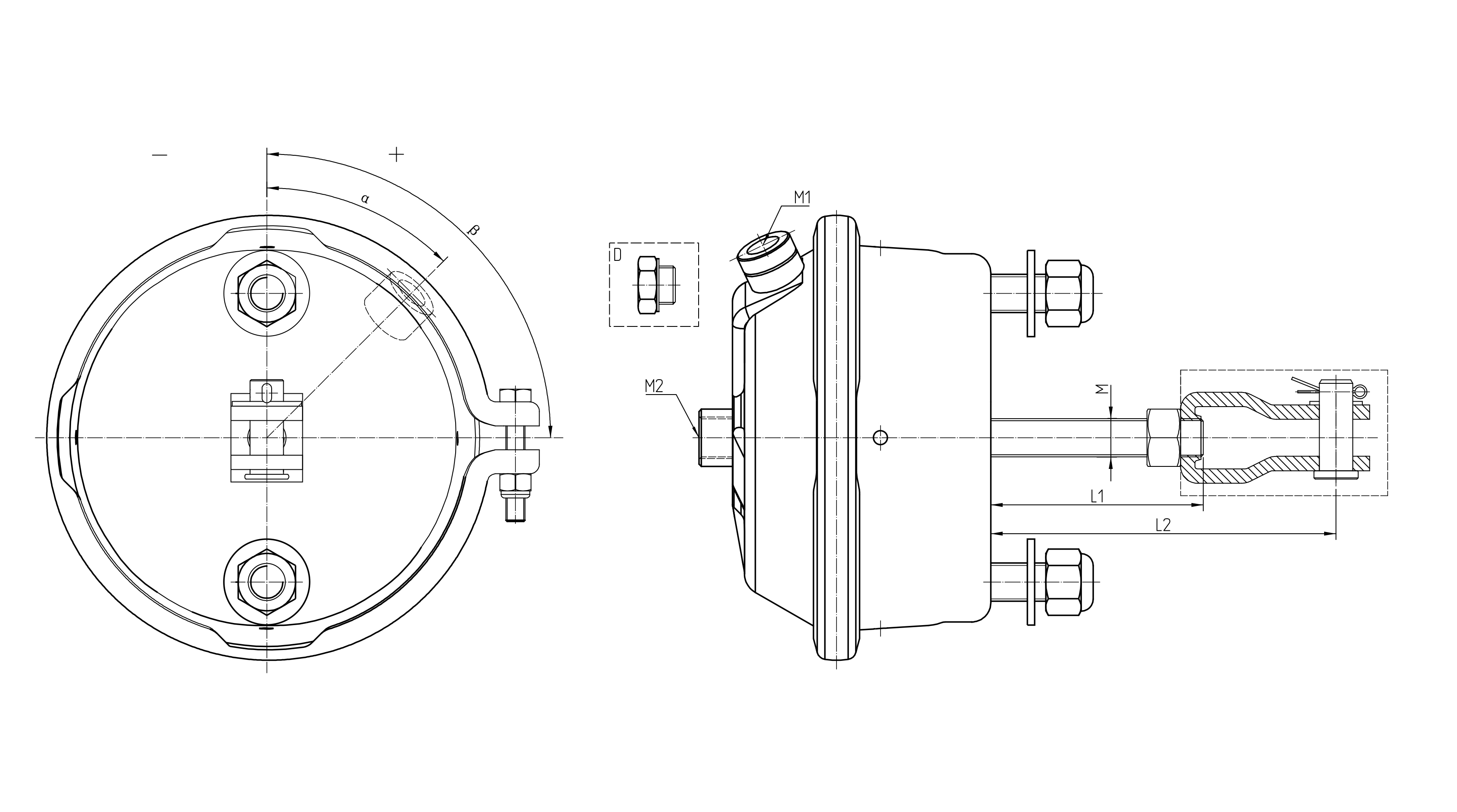

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	STROKE	M1	M2	α	β	L1	L2
16G	SD92001				M14*1.5	M14*1.5+D	0	90		165
20G	SD92002L		CH3519KQG010N4		/	Z1/4	/	60		225
20G	SD92002R		CH3519KQG020N4		/	Z1/4	/	-60		225
24G	SD92004			57	/	M16*1.5	/	60		225
24G	SD92004D			57	M14*1.5	M14*1.5+D	0	90		65
30G	SD92003	4231070100		64	M16*1.5	M16*1.5	0	90	58
20GT	SD92002T				/	Z1/4	/	45		208
24GC	SD92004C	4231060410	20438473 1618593	65	M16*1.5	M16*1.5	90	45	58
