Old Version
product
Old Version
product

Old Version

OE Number  :  3454105030; 0544443020; A3519020-02L; 0544446020; JY3530NP6-010
Suitable for  :  BPW
Parameters

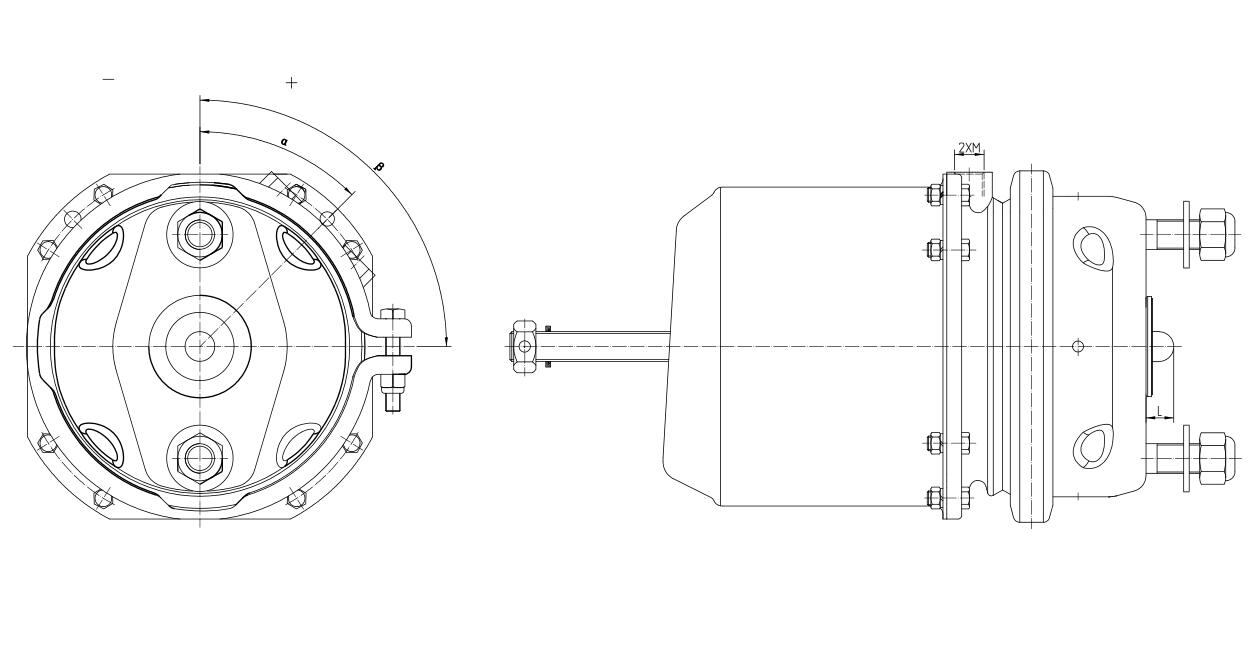

TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L VEHICLE
H16/24P SD05001
3454105030
3454104830
M16*1.5 0 -90 8700 15
H20/24P SD05002
0544443020
0544443010
0544444020
0544444010
3454104130
3454105130
M16*1.5 0 -90 8700 15 BPW
SD05002N01 A3519020-02L M16*1.5 0 30
SD05002N02 A3519020-02R M16*1.5 0 -30
H24/24P SD05004
0544446020
0544446010
M16*1.5 0 45 8700 15 BPW
SD05004N CH3530KQP030/040BO M16*1.5 90 45 8700
SD05004N01 JY3530NP6-010 M16*1.5 -90 90 8700
SD05004N02 JY3530NP6-015 M16*1.5 90 -90 8700
H24/30P SD05005 M16*1.5 0 45 9100 15
