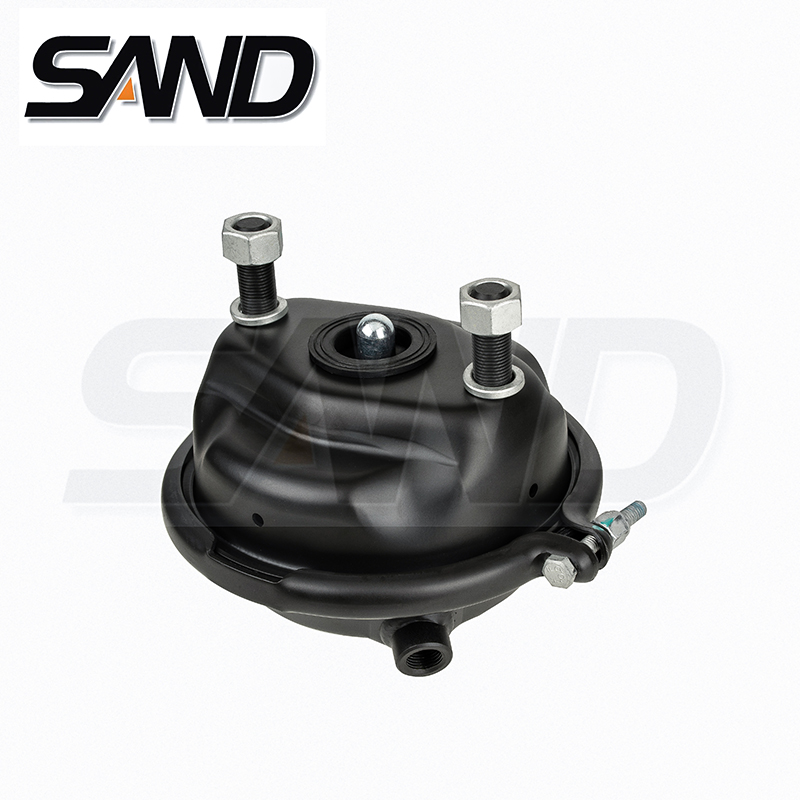

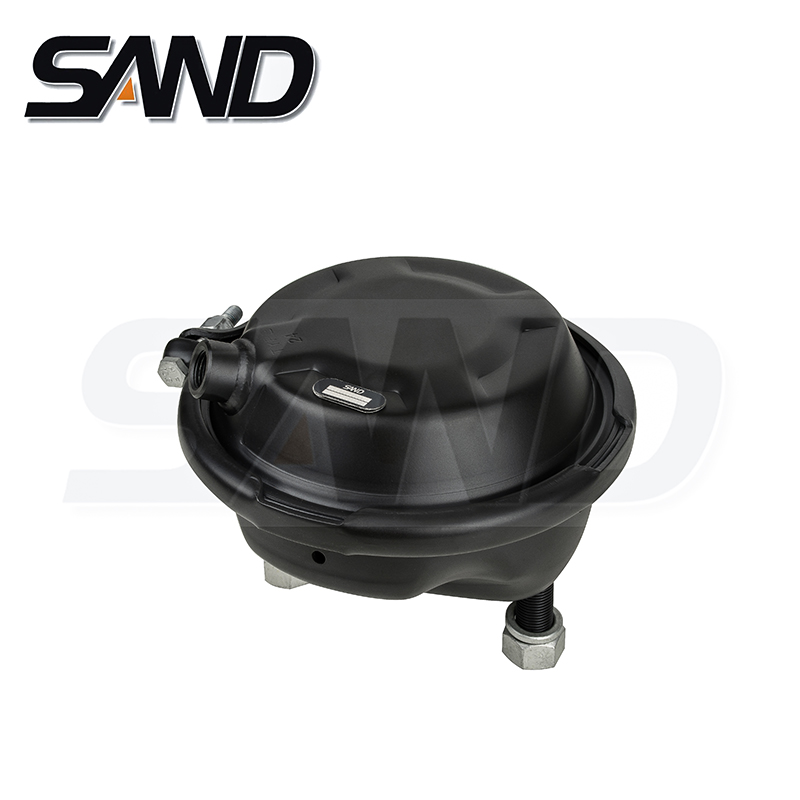

Single Port Brake Chamber-Disc

OE Number : BS3301-II30614; BS3402-II30616; 4231050200; 4235061400; BS3500-II15227
Suitable for : DAF; IEVCO; DAIMLER; MAN; BPW; EVOBUS; SAF; ZF; DENNIS

Detailed Drawing

Catalogue

Parameters

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
10P1	SD01021	BS3135-K000575		64	M16*1.5	M16*1.5	0	45	15	ERF
12P1	SD01005			64	M16*1.5	/	45	0	15	DAF,IEVCO
12P1	SD01005N	BS3207-II39193	41211031	64	M16*1.5	/	0	45	15	DAF,IEVCO
14P1	SD01006			64	M16*1.5	/	45	0	15	IEVCO
	SD01006N01	BS3275-II40358F	41211018		M16*1.5		37	-75
	SD01006N04	BS3284-K008309	41211032		M22*1.5VOSS		0	90
16P1	SD01001			64	M16*1.5	/	45	0	15	DAIMLER,EVOBUS, IEVCO ZF,SAF,DENNIS
	SD01001N01	BS3301-II30614	A0054202924 A0054203924		M22*1.5（VOSS)	/	45	0
	SD01001N02	BS3314-II37110 BS3326-II38466F BS3361-II38924F 4231040200	4454106530 4454107530 4231000000 0501316775		/	M16*1.5	/	90
	SD01001N05	BS3343 4235040020	4454108130		M16*1.5	/	-90	90
18P1	SD01007		CA18DBM	64	M16*1.5	/	45	0	15
18P1	SD01007N01	BS3350-II5229		64	M16*1.5	/	-90	45	15
20P1	SD01002			64	M16*1.5	/	45	0	15	DAIMLER,NEOPLAN,ZF,DENNIS
	SD01002N10	BS3402-II30616 BS3430-II38107F	00501314933 02.0327.74.00 HLP3519Q20-015				-60	-60
	SD01002N11	BS3403-II30617 BS3440-II38591F	00501314934 02.0327.75.00 HLP3519Q20-010				60	60
	SD01002N03		A3519010-11R				45	90
	SD01002N04		A3519010-11L				135	90
	SD01002N09	BS2402-K001294	81.51101-6505				0	180
	SD01002N21	BS2417-K006227			M22*1.5 VOSS		90	135
	SD01002N08		F-20DBK		Z3/8		90	-90
	SD01002N19	4231050200	81511016384 81511016384 1524853		/	M16*1.5	/	-90		MAN,DAF,SAF
	SD01002N20	BS3436-II38528F	4454106730		/	M16*1.5	/	90		MAN,DAF,SAF
22P1	SD01008			64	M16*1.5	/	45	0	15	BPW,SAF,DAIMLER
	SD01008N03	BS3453-II31099	52585		M16*1.5		-90	45	15
	SD01008N10		F-22DBK		Z3/8		90	-90	15
	SD01008N11	BS3462-II38529F	4454106830		/	M16*1.5	/	90	15
24P1	SD01003			64	M16*1.5	/	45	0	15
	SD01003N01		25PK0222E		M22*1.5VOSS		45	0
	SD01003N	4235061400 4235061420 BS2500-II38472F BS2503-II38475F	1542893 1427475 1427478		M16*1.5		-45	0		DAF
	SD01003N09	BS3500-II15227 BS3538-II37127	81.51101-6466; 41031460 41211460				90	90
	SD01003N51		35190106770				-30	0
	SD01003N09		F-24DBK-702		Z3/8		45	-90
27P1	SD01010	BS3551-II31100		64	M16*1.5	/	-90	45	15
30P1	SD01004	4235070000		64	M16*1.5	/	90	45	15
