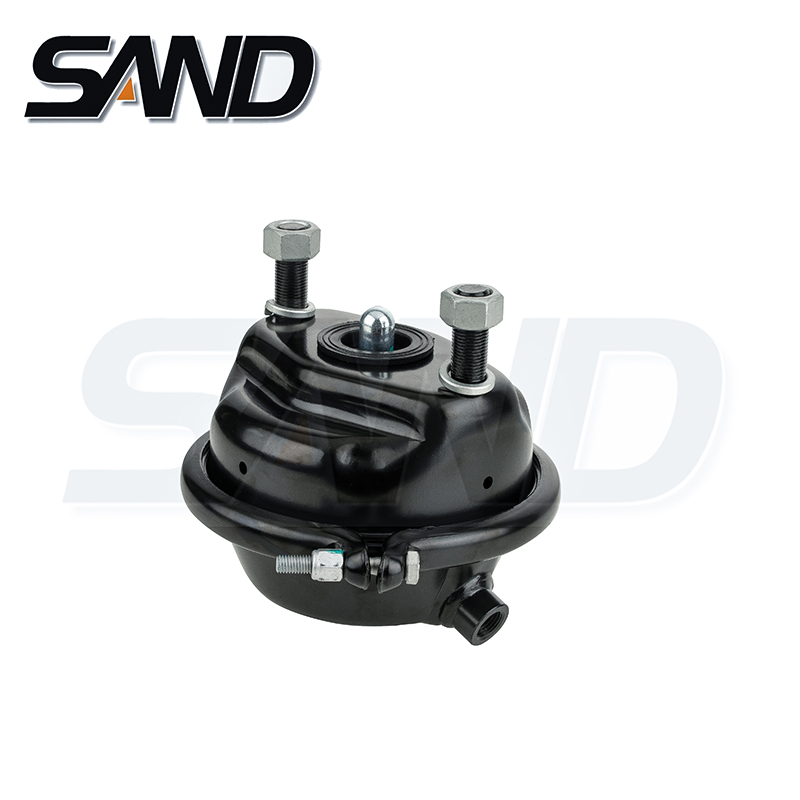

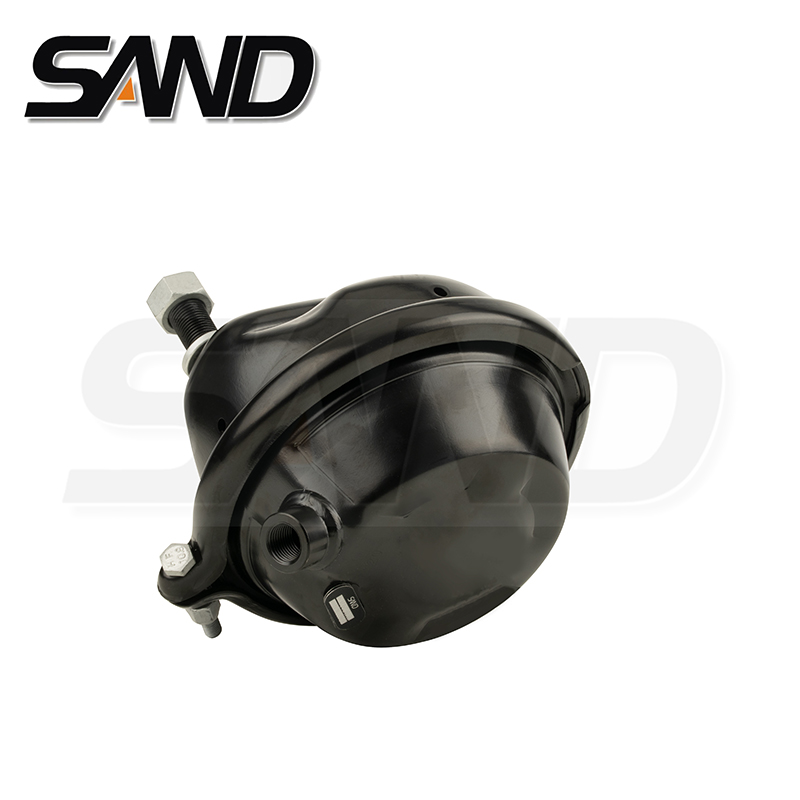

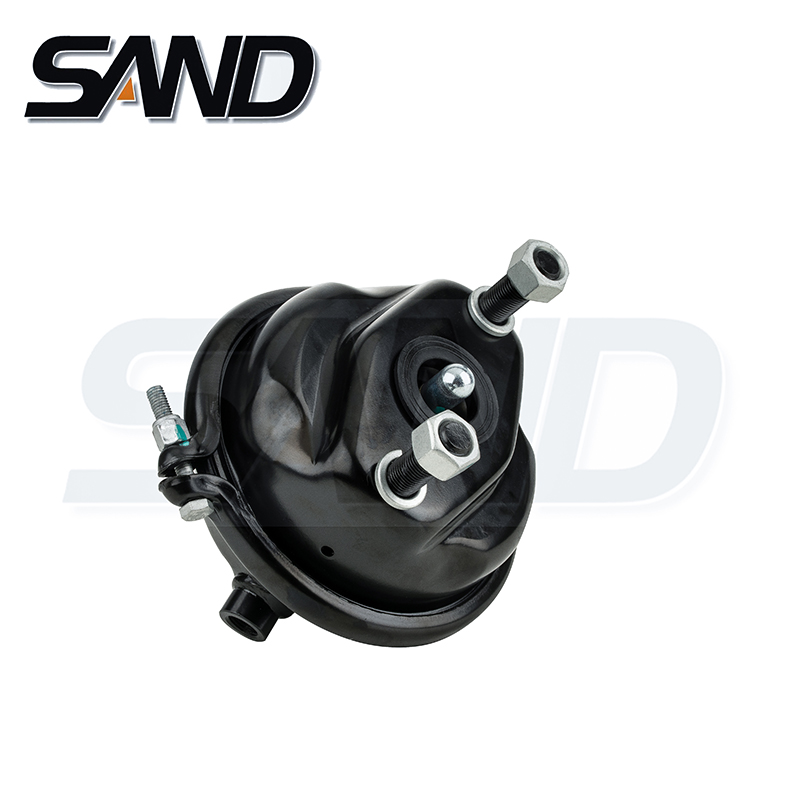

Single Port Long Stroke

OE Number : 4231047000; 4231067000; BS3536-II37133; 25PK0148E; BCM6201200
Suitable for : MERITOR; MAN; NEOPLAN

Detailed Drawing

Catalogue

Parameters

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
12PL1	SD01015		BCM6201200	75	M16*1.5	M16*1.5+D	0	45	20	MERITOR
14PL1	SD01016			75	M16*1.5	/	45	0	20
16PL1	SD01011N01	4231047000 4231047110		75	M22*1.5	/	90	180	26
20PL1	SD01012N01	4231057010		75	M22*1.5	/	90	-167	20	MAN,NEOPLAN
22PL1	SD01018		BCM6202200	75	M16*1.5	M16*1.5+D	0	-45	20
24PL1	SD01013N			75	M22*1.5VOSS	/	0	45	20
	SD01013N02		25PK0148E		M22*1.5		90	-167	26
	SD01013N36	4231067000 BS3536-II37133	81.99804-2092		M22*1.5		0	90	20
25PL1	SD01009N01	4235110100		75	M22*1.5	/	-90	167	26
27PL1	SD01020		BCM6202700	75	M16*1.5	M16*1.5+D	0	45	20
30PL1	SD01014			75	M16*1.5	M16*1.5+D	0	45	20
