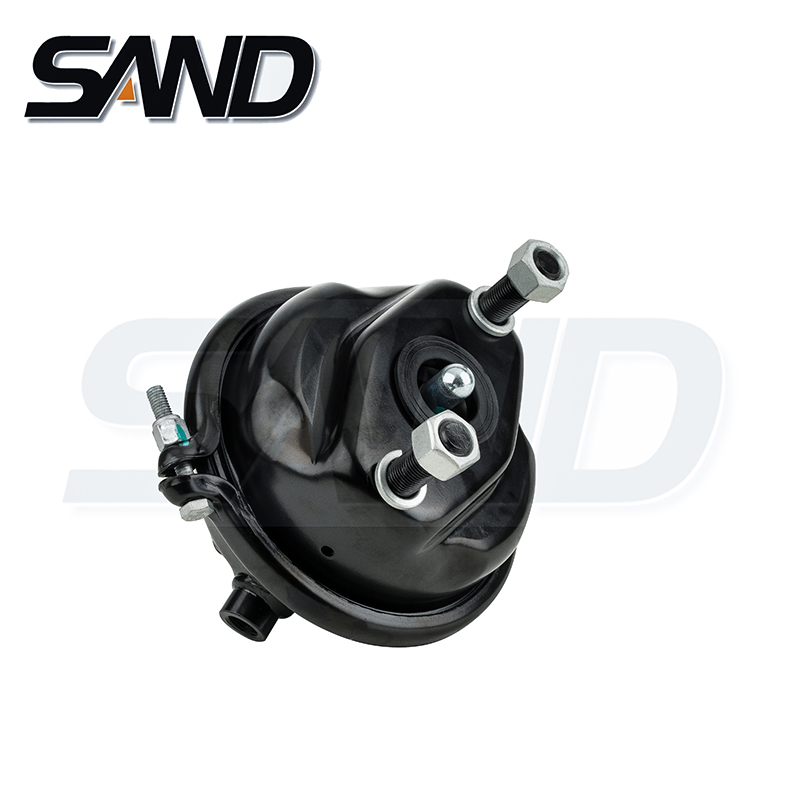

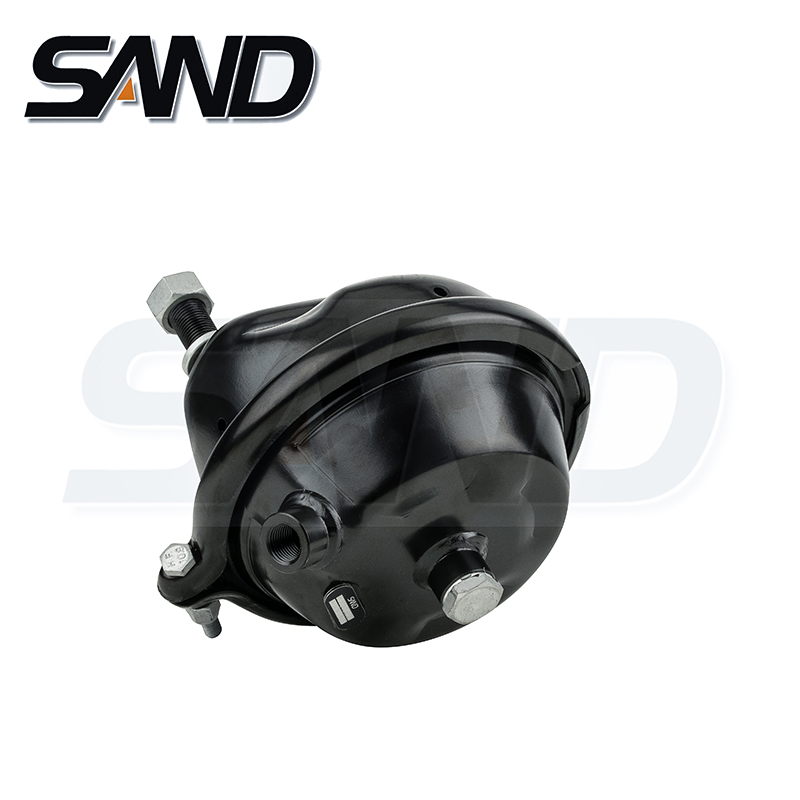

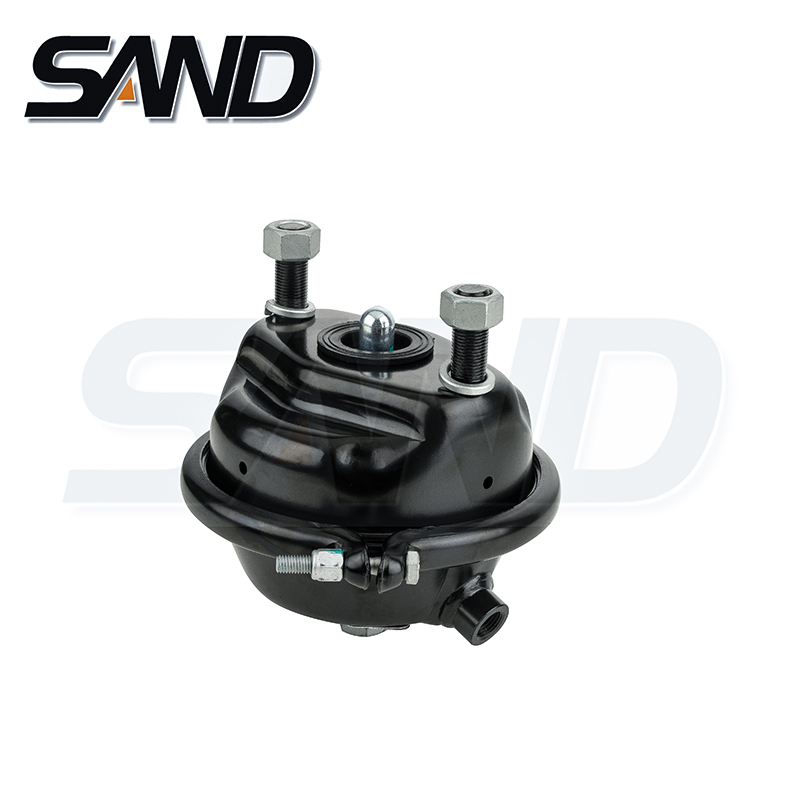

Double Ports Long Stroke

OE Number : BCM6201200; 02.239.014.6L; BCM6202000; 22089022
Suitable for : MERITOR; MAN; NEOPLAN

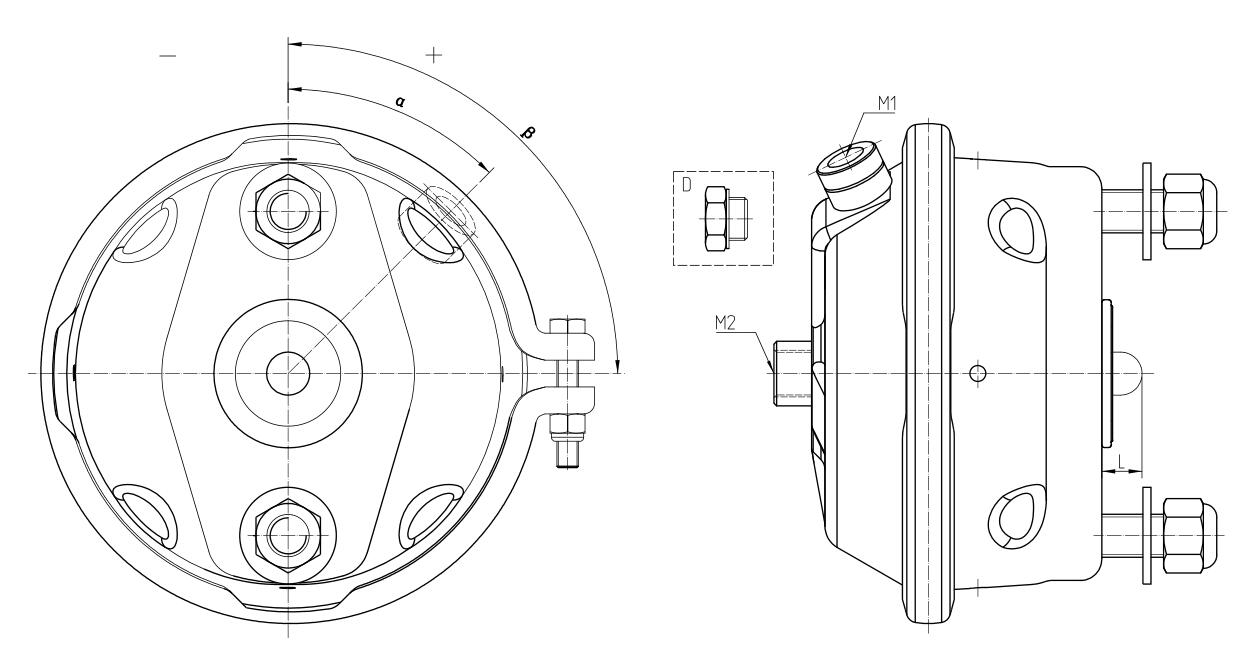

Detailed Drawing

Catalogue

Parameters

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
12PL2	SD01015D		BCM6201200	75	M16*1.5	M16*1.5+D	0	45	20	MERITOR
14PL2	SD01016D		02.239.014.6L	75	M16*1.5	M16*1.5+D	45	0	20
14PL2	SD01016D01		BCM6201400	75	M16*1.5	M16*1.5+D	0	45	20
16PL2	SD01011D			75	M16*1.5	M16*1.5	0	45	15
16PL2	SD01011D01				M16*1.5	M16*1.5+D	0	45	20
18PL2	SD01017D		BCM6201800	75	M16*1.5	M16*1.5+D	0	45	20
20PL2	SD01012D01		BCM6202000		M16*1.5	M16*1.5	0	45	20	MAN; NEOPLAN
20PL2	SD01012D02				M22*1.5VOSS	M22*1.5VOSS	-90	167	20	MAN; NEOPLAN
22PL2	SD01018D		BCM6202200	76	M16*1.5	M16*1.5+D	0	-45	20
24PL2	SD01013D			75	M16*1.5	M16*1.5+D	0	-45	20
24PL2	SD01013D01		22089022	75	M16*1.5	M16*1.5+D	0	45	15
27PL2	SD01020D		BCM6202700	75	M16*1.5	M16*1.5+D	0	45	20
30PL2	SD01014D			76	M16*1.5	M16*1.5+D	0	45	20
