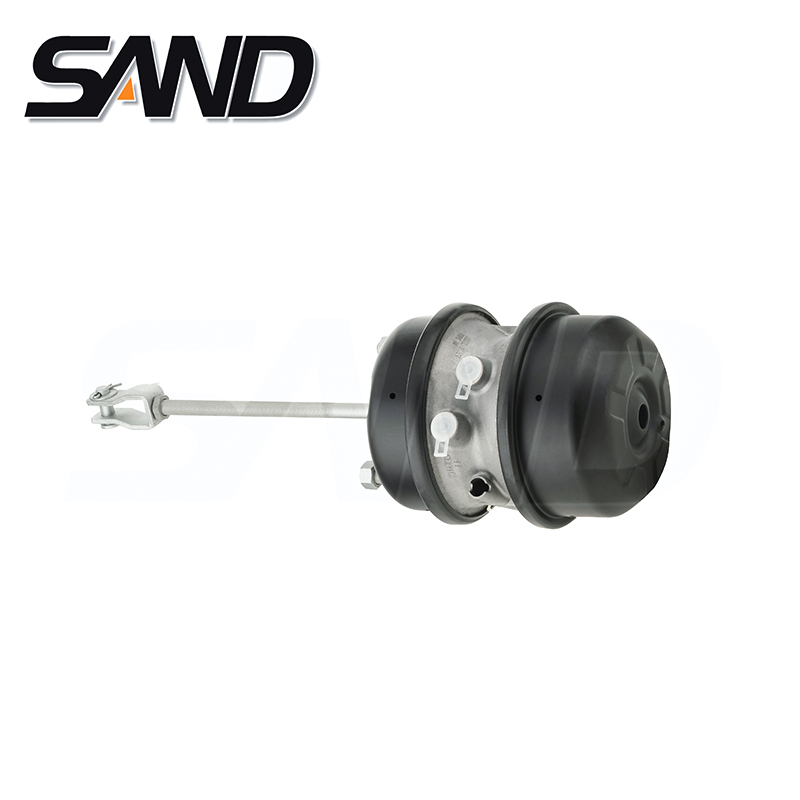

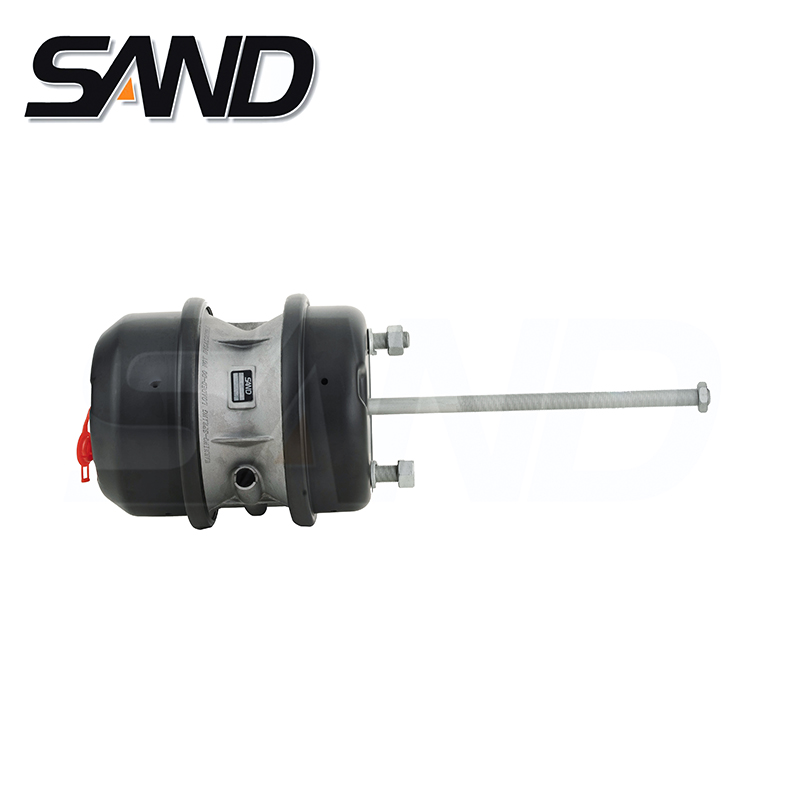

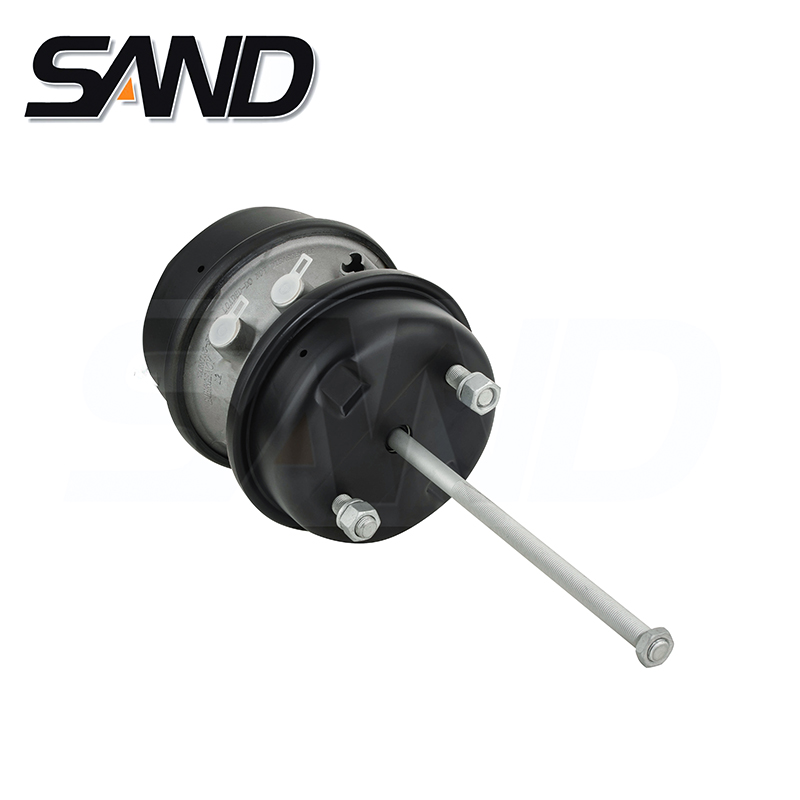

Regular S-cam DD
product
Regular S-cam DD
product

Regular S-cam DD

OE Number  :  BX7401; BX7514; 9253713000; 9253723000; 9253713080
Suitable for  :  DAF; BPW; RENAULT; SCANIA; SAF; SCHMITZ

Detailed Drawing

  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
Contact Us
Catalogue
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L1 L2 VEHICLE
1624G SD93002 M16*1.5 -90 0 5800 270
2024G SD93003 165142
2024GCM
2024GCMSS
BX7401		 M16*1.5 -90 0 5800 270
2424G SD93004 165141
2424GCLSM
BX7516
9253703170		 M16*1.5 90 -45 5800 265
2430G SD93005 2430GCMLS M16*1.5 0 90 7500 330
SD93005N
BX7514-SEB01267
BX7514-K031748
 905278 90 180 6900 250
SD93005M 9253611000
1506381
5021170324
 0 45 5700 203
3030G SD93006
BX7611-K031744
BX7612-K031745
1519143
5021170325
 M16*1.5 90 135 7300 235 DAF
RENAULT
SD93006N 9253621000 -30 5800 335
Long Stroke:
2030GL 925 370 300 0
544419010
1505111
2430GL SD93001 9253713000
9253713070
BX7523
BX7525		 0203273900
0544420010
04454109270
0544420040
0544420100
0544420110
1325352
5021170326
050408
346154001
346181001		 M16*1.5 90 45 7500 186 BPW
DAF
Renault
Schmitz
SD93001N
9253713080
9253713090
 0 6500 227
SD93001S 90 135 6750 285
3030GL SD93007 9253723000
0544421040
0544421110
0544421010
0544421011
0883258
0879099
1325351
4454105800
1738483
 M16*1.5 -90 -45 6800 186 BPW
DAF
Scania
SAF
SD93007A
9253771100
9253771210
 883258 90 7500 288
BPW    DAF,
Scania, SAFPW
SD93007S 135 6750 250

Leave a Message

Jiaxing Shengding Machinery Co., Ltd. originated from the core machinery team established by Sheng Zhonglin in 2003 and has gradually grown. It was re-registered and established in 2007. SAND has been adhering to the road of independent innovation for many years. All products are independently researched and developed, and new products are continuously introduced, becoming the first professional manufacturer of spring brake gas in the same industry in China.
Master first-hand information

News

product

Next Page

Views News
Product Knowledge

The Regular S-cam DD Brake Chamber is a robust and high-performance component that plays a pivotal role in the air brake system of heavy-duty vehicles. Specifically engineered for use with S-cam drum brake systems, this product offers exceptional braking control and reliability in demanding applications.

Designed with precision and durability in mind, the Regular S-cam DD Brake Chamber boasts a sturdy construction and precise engineering. It features a cylindrical housing made from high-quality materials to withstand the rigors of heavy-duty usage. This ensures its longevity and resistance to environmental factors.

With its regular S-cam design, this brake chamber provides a smooth and controlled brake actuation. The regular S-cam profile optimizes the force distribution, promoting even wear on the brake shoes and enhancing overall braking performance.

As an essential part of the braking system, the Regular S-cam DD Brake Chamber contributes to the safety and control of heavy-duty vehicles. Its precise engineering, durable construction, and compatibility make it an indispensable component for reliable and efficient braking operations.
