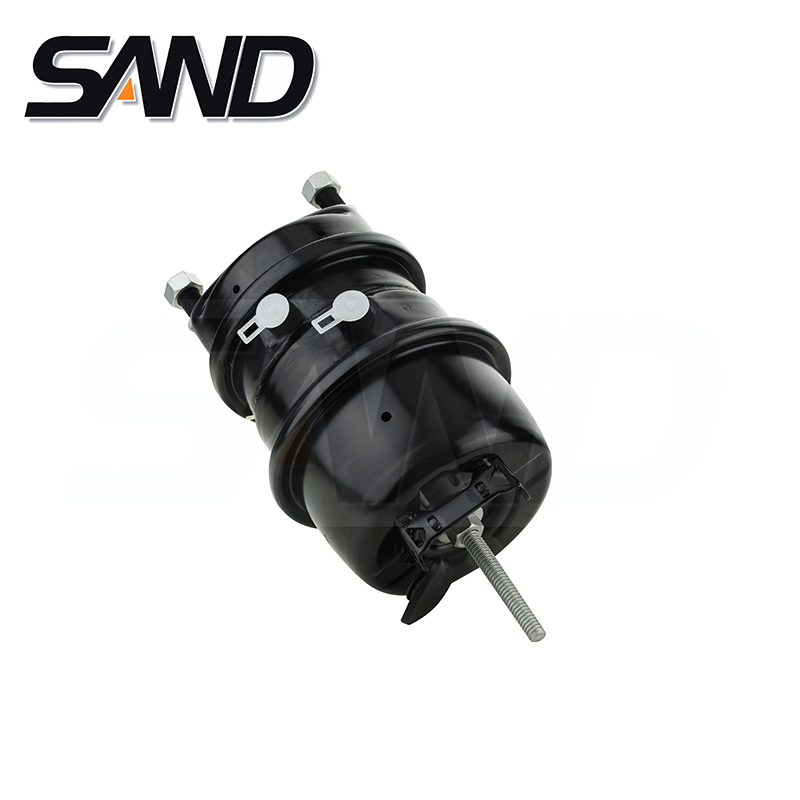

All-Steel double diaphragm brake chamber Disc

OE Number : 1162544; 41229063; 41229075; 41231078; 04454107964

Suitable for : SAF; ROR
brake chamber Disc of the whole body is steel, include middle connection body, and the service chamber and parking chamber both use sealed structure and can’t be disassembled. Disc brakes are an alternative to drum brakes and are often used in modern vehicles, especially on the front wheels. They work by using calipers to squeeze brake pads against a rotating disc rotor to create friction and slow down or stop the vehicle.

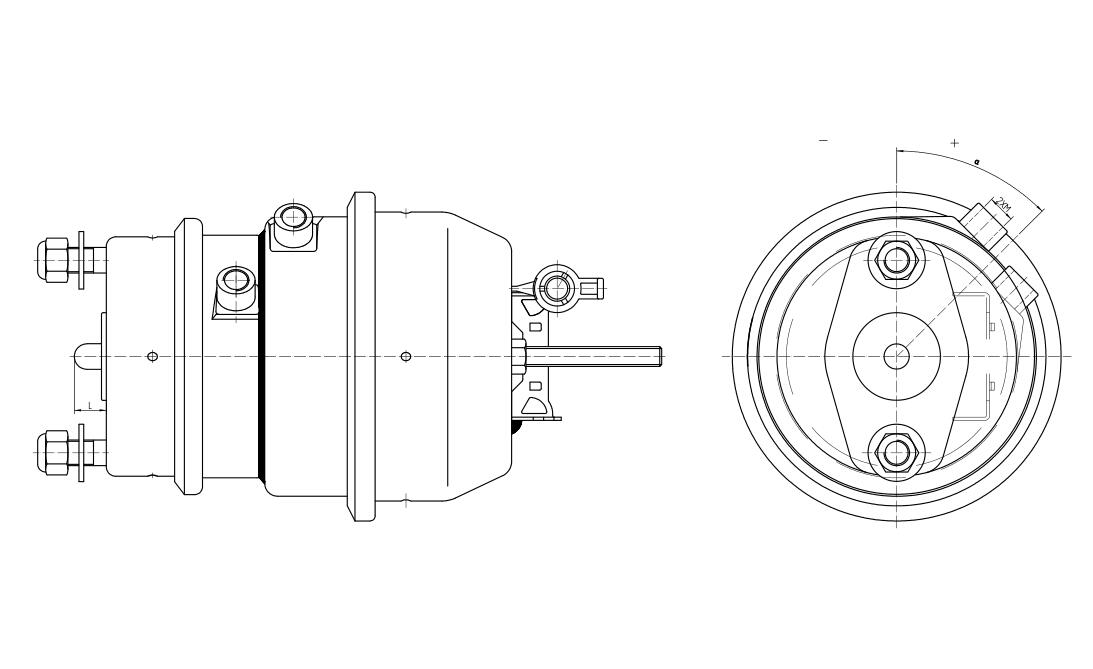

Detailed Drawing

Catalogue

Parameters

	SD NUMBER	OE KNORR/WABCO	PART NUMBER	S	M	α	β	F	L	VEHICLE
16/24	SD03010	1162544	4454107764	64	M16*1.5	90	/	6000	15
	SD03010L		41226803		M16*1.5	-45				SAF
	SD03010R		41226802		M16*1.5	45
20/24	SD03020	1035964	04454107964	64	M16*1.5	90	/	6000	15
18/24	SD03007L	41229063	41226807	64	M16*1.5	45	/	7500	15	ROR
	SD03007R	41229062	41226806			-45
20/24	SD03004			64	M16*1.5	90	/	7500	15	ROR
	SD03004L	41229067	41226811			-45
	SD03004R	41229066	41226810			45
22/24	SD03008R	41229071	41229268	64	M16*1.5	45	/	7500	15	ROR
	SD03008L	41229070	41229267			-45
24/24	SD03005R	41229075	41229272	64	M16*1.5	45	/	7500	15
	SD03005L	41229074	41229271			-45
Long Stroke:
14/24L	SD03001	LH 41231074	41227567	76	M16*1.5	45	/	7500	20	ROR
	SD03002	RH 41231073	41227566			-45
16/24L	SD03006L	LH 41231078	41227569	76	M16*1.5	45	/	7500	20	ROR
	SD03006R	RH 41231077	41227568			-45
18/24L	SD03003L	LH 41231082	41227571	76	M16*1.5	45	/	7500	20	ROR
	SD03003R	RH 41231081	41227570			-45
	SD03003L01					45			15
	SD03003R01					-45
20/24L	SD03009L	LH	41227573	76	M16*1.5	45	/	7500	20	ROR
	SD03009R	RH	41227572			-45
22/24L	SD03011L	LH	41227575	76	M16*1.5	45	/	7500	20	ROR
	SD03011R	RH	41227574			-45
24/24L	SD03012L	LH	41227868	76	M16*1.5	45	/	7500	20	ROR
	SD03012R	RH	41227867			-45
