All Sealed Brake Chamberdisc

OE Number ： 9253840100; BS7303-K026893; 9253840160; 05.444.40.01.0; 4454104830

Suitable for ： SAF; BPW; HALDEX; SCHMITZ
Air brake chamber sealed ,more stable and high safety. For the key components, we share same supplier with wabco, knorr. A sealed brake chamber is designed to minimize the risk of contamination and moisture entering the brake chamber. These contaminants can negatively affect the performance and lifespan of the brake system. Sealed brake chambers are often used in harsh or wet conditions to ensure the reliability of the brakes.

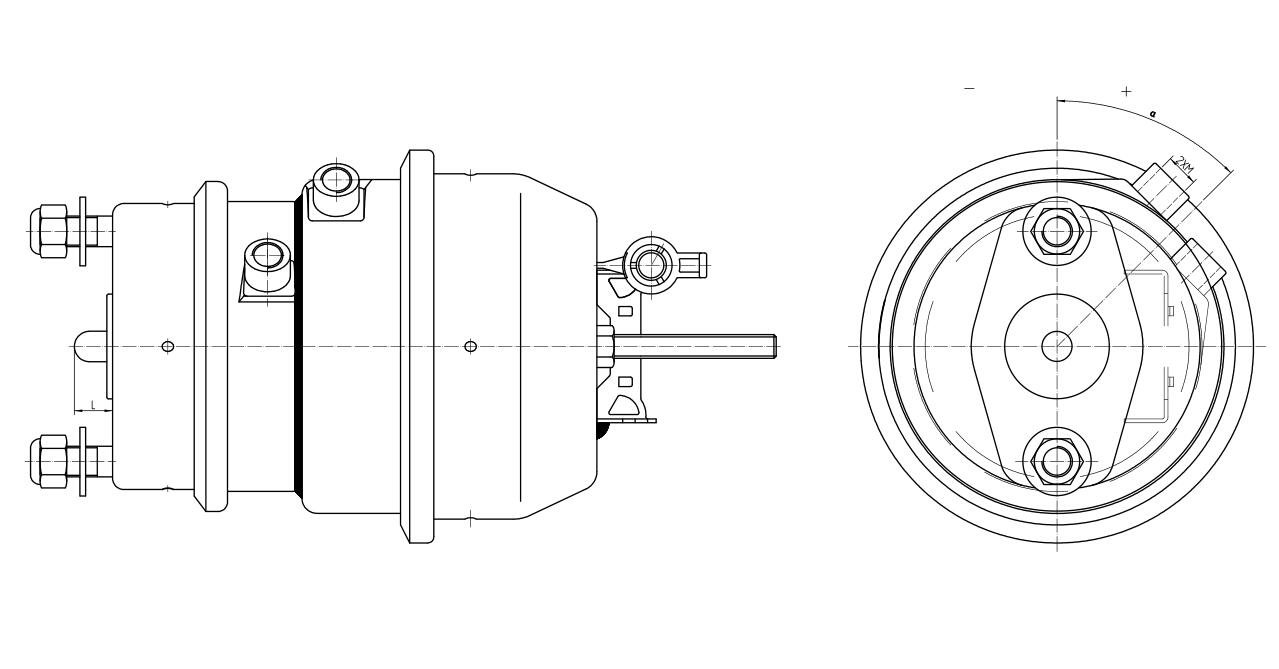

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE Number	PART NUMBER	M	α	β	F	L	VEHICLE
14/24P	SD02004		05.444.38.01.0	M16*1.5	60	135	5600	15	BPW
14/24P	SD02004N		05.444.38.02.0	M16*1.5	-60	-135	5600	15	BPW
16/24P	SD02001	9253840100 9253840010	05.444.40.01.0 05.444.40.01.3 05.444.40.02.0 05.444.40.07.0 05.444.40.08.0 4454104830 4454107730 4454107764 4454107630 4454107230 1351624004	M16*1.5	90	-45	5800	15	SAF BPW HALDEX
	SD02001N03	9253840110			45	-90	5800		SAF BPW
	SD02001N04	9253840120			-45	90	5800		SAF BPW
	SD02001N	BS7303-K026893 BS7303-II38119		M16*1.5	-90	45	5800	15	SAF BPW
	SD02001N01	BS7304-K026894 BS7304-II38524 BS7309-K026896 BS7309-II39355	4454107230 4454107730 054998 114286 1097975	M16*1.5	90	-90	5800	15	SAF SCHMITZ
	SD02001N02	BS7305-K026895 BS7310-K026897	4454107130	M16*1.5	0	0	5600	15	SAF
	SD02001N11			Z3/8	90	-45		15	SAF BPW
	SD02001R	9253840160		M16*1.5	-90	135	5900	15	SAF BPW
18/24P	SD02006	BS7750-K026902		M16*1.5	-90	45	5700	15
	SD02006N03	BS7751-K026902		M16*1.5	-90	90	5700	15
	SD02006N04	9254730010		M16*1.5	90	-90	5900	15
	SD02006N07	BS7755-K026904		M16*1.5	120	120	5700	15
	SD02006N08	BS7756-K026905		M16*1.5	-120	-120	5700	15
	SD0200605	9254730020		M16*1.5	0	180	5900	15
	SD02006N01		05.444.42.02.0 05.444.42.04.0	M16*1.5	-60	-135	5900	15	BPW SCHMITZ
	SD02006N02		05.444.42.01.0 05.444.42.03.0	M16*1.5	60	135	5900	15
20/24P	SD02002	9253801010	05.444.44.01.0 05.444.44.02.0 05.444.44.02.3 04454105130 04454107830 04454107930 04454107964 1352024003 1352024004	M16*1.5	90	-45	5800	15	BPW SAF HALDEX
	SD02002N02	9254700010		M16*1.5	0	180	5900	15
	SD02002N03	9254700000		M16*1.5	90	-90	5900	15
	SD02002N01	BS7402-K045570	05.444.44.02.0 05.444.44.04.0 1137409	M16*1.5	-60	-135	5900	15
	SD02002N02	BS7403-K045718	05.444.44.01.0 05.444.44.03.0	M16*1.5	60	135	5900	15
	SD02002N11			3/8	90	-45	5900	15
24/24P	SD02003			M16*1.5	90	-45	5600	15
24/24P	SD02003N11		F2424DB01	Z3/8	90	60	5600	15
24/30P	SD02007			M16*1.5	90	-45		15
30/30P	SD02005			M16*1.5	90	-45	8000	15
